Solare Off-Grid-PTZ-Überwachung für abgelegene Standorte – Referenzlösung

A solar off-grid PTZ surveillance project should be engineered from the monitoring task and the daily energy budget outward — not from a panel wattage or a battery amp-hour rating. At a remote unmanned site there is no grid, no routine fuel logistics and no on-site staff, and the energy harvested each day changes with season, dust and cloud cover. Camera load, illumination duty cycle, backhaul, storage and maintenance therefore have to be planned as one integrated node.

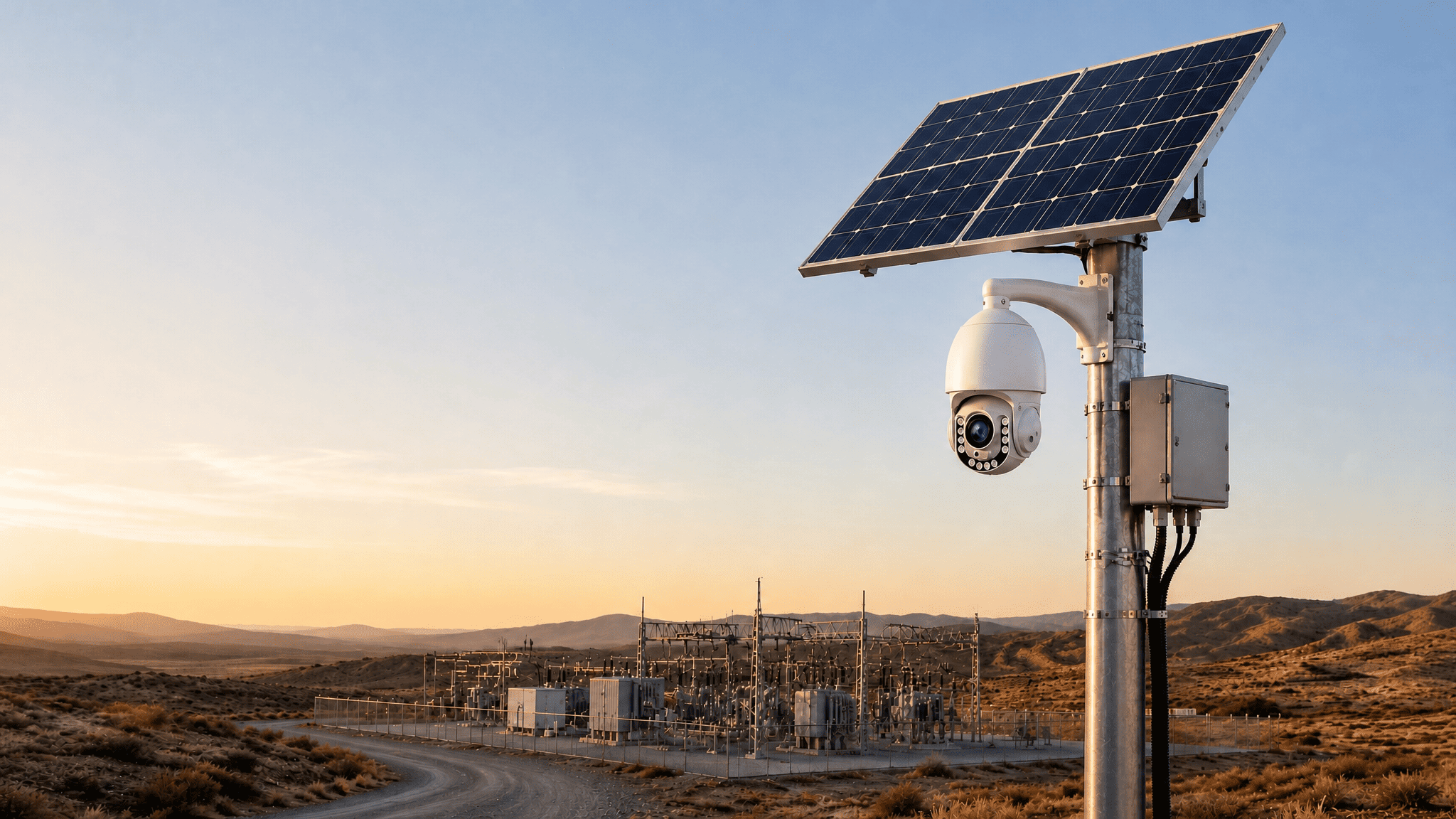

This page is an engineering reference configuration for a solar-powered PTZ monitoring node. It is not a customer case study and it is not a fixed bill of materials. It shows how the load, charge controller, battery, PV generation, backhaul and VMS/edge path are organized for remote infrastructure monitoring where energy is the binding constraint.

Direct answer: A solar off-grid PTZ surveillance node is an engineering reference configuration in which a defined camera load and duty cycle set the battery autonomy target, the autonomy target drives PV and charge-controller sizing for the worst-month solar resource, and the same node carries video and control over a wireless or cellular backhaul to a VMS or edge recorder. No single panel, battery or camera is a complete specification. The final configuration depends on the measured load, worst-month irradiance, panel orientation, tilt and shading, battery chemistry and temperature, low-voltage cutoff, surge and grounding, mounting load and the acceptance test — and is confirmed only after a site survey and an acceptance test.

Scenario Definition: Solar Off-Grid Remote Infrastructure Monitoring

This reference configuration addresses a remote infrastructure monitoring node where one or more of the following conditions typically apply:

• No mains grid connection and no practical or economic cable route to the monitored asset;
• Hot, dusty or high-altitude exposure with a wide day-to-night temperature swing;
• Seasonal low-sun periods and multi-day overcast or rain events that reduce the daily energy harvest;
• Unmanned operation, with monitoring and control performed remotely and maintenance visits kept infrequent;
• A requirement to send live video, alarms and PTZ control to a central operations center or VMS;
• An existing VMS, NVR or edge analytics platform that the proposed node must integrate with.

These conditions should be quantified before any camera, panel, battery or enclosure is selected. A representative project brief might describe a fleet of remote sites spread from tens to more than a hundred kilometers from the nearest grid, peak ambient temperatures in the tens of degrees Celsius, and multi-day cloud events. Such figures are example site inputs to validate — they are not published results, and they should be replaced with the actual survey and load data for the project.

Reference note: A solar off-grid node should be treated as a system property, not a product. A panel or battery rating without a measured load, a duty cycle and a worst-month solar resource is not a complete power specification.

System Objective: Maintain Surveillance Under Energy Constraints

A solar off-grid surveillance node may contain several distinct tasks that should not be collapsed into a single performance claim:

1. Detect: indicate that a person, vehicle or object may be present in a defined zone;
2. Recognize: provide enough information to classify the target or activity;
3. Identify: provide the detail the project's verification criterion requires when distance and conditions permit;
4. Verify: give an operator the image, context and control needed to decide the response;
5. Transmit and record: deliver video, alarms and control to the target platform, with local recording as a fallback;
6. Maintain: keep the node powered, aligned and serviceable through low-sun periods, heat, dust and remote conditions.

Under an energy constraint, every additional watt of camera, illumination, heating or backhaul traffic is energy the PV array must harvest and the battery must store. Detection, recognition, identification and verification are not interchangeable, and a surveillance distance figure should always be tied to a target, sensor configuration, field of view, illumination, weather condition and test method.

Reference note: The IR/illumination duty cycle is often the largest and least predictable part of a PTZ node's load. It should be measured or explicitly estimated rather than assumed, because it directly drives battery autonomy and PV sizing.

Reference Architecture: A Solar-Powered PTZ Monitoring Node

A project team can use the following energy and data path as a starting architecture. It shows what belongs in the node, not a fixed set of parts for every site.

Monitored load: PTZ camera + IR / illumination + router / backhaul + edge
                     ↓  (measured load and duty cycle set the sizing)
Charge controller (MPPT) and DC distribution
                     ↓
Battery bank (LiFePO4 or specified chemistry) - autonomy buffer
                     ↓
PV array (solar generation) - sized on the worst-month resource
                     ↓
Backhaul (wireless bridge / cellular) - video, alarms and PTZ control
                     ↓
VMS / edge recording / alert review / remote maintenance

The architecture should answer six questions before procurement:

• What is the measured or estimated load, and what is the illumination and PTZ duty cycle?
• How many hours or days of autonomy must the battery provide with no solar input?
• What is the worst-month solar resource, and how much design margin is required over it?
• How are the panels oriented, tilted and shaded across the year, and after dust accumulation?
• How do video and control reach the operations center, and what happens when the link degrades?
• What happens on a low-voltage event, and how is the node reset, serviced and updated remotely?

Equipment Roles in a Solar Off-Grid Configuration

Each role below is described as a task with its own applicable conditions and verification points. The products named are reference candidates and relevant options for evaluation — not a fixed kit and not a guarantee of site performance.

1. PTZ Camera (the Monitored Load)

Engineering task: Provide operator-controlled optical observation, preset positioning and target verification across the monitored area, while presenting a defined and, where possible, minimized electrical load to the solar node.

Applicable conditions: Useful where operator inspection and a changing field of view are central, and where the camera's power draw, heater and IR illumination can be characterized for the site's duty cycle. Less suitable as a sole channel where persistent darkness or low visible contrast is expected, and uneconomical to over-specify in zoom or illumination if the battery and PV budget cannot support the resulting load.

Reference candidates: The IRM mini outdoor PTZ camera is a relevant compact outdoor PTZ candidate for remote nodes where a smaller, lower-footprint camera helps the energy budget. The IRS2 IR outdoor speed dome camera with air wiper is a relevant candidate where dust, condensation or spray buildup on the window is a recurring issue and a wiper is required. Confirm the actual power draw, heater and illumination behaviour for the chosen configuration.

What to verify before selection: Camera power draw by mode (idle, pan/tilt, IR on, heater on), IR/illumination duty cycle, wiper or heater energy cost, operating temperature range, ingress rating, lens and field of view, and integration with the target VMS. Product-page figures are conditional and should not be treated as guaranteed performance for every site.

2. Solar Generation and Storage

Engineering task: Harvest and store enough energy to run the measured load through the worst-case period with no solar input, and to recharge the battery during normal operation.

Applicable conditions: Relevant for any node without grid access. The panel array and battery bank must be sized together against the load, the autonomy target and the worst-month resource. A larger panel alone does not guarantee autonomy if the battery is undersized, and a larger battery alone does not recharge during a prolonged low-sun period.

Reference candidates: The 300W 180AH Solar Panel Energy Power System is a relevant higher-capacity candidate for a combined camera and backhaul load; its product page describes a mono-crystalline panel and a LiFePO4 battery pack intended for continuous operation through several consecutive cloudy or rainy days. The 120W Industrial Solar Kit is a relevant smaller candidate for lower-draw nodes such as a single camera with a 4G router. Neither figure should be presented as a guaranteed configuration for every PTZ camera — confirm the final configuration against the measured load and the worst-month resource.

What to verify before selection: Measured daily energy demand, autonomy target in hours or days, worst-month solar resource, charge-controller type (MPPT) and rating, battery chemistry and usable capacity, battery operating temperature and derating, depth of discharge, low-voltage cutoff, recharge time, and the site's dust and shading conditions.

3. Mounting and Environmental Protection

Engineering task: Carry the camera, panel and backhaul hardware against wind and vibration, manage cable entry and drainage, and protect DC connections, the controller and the router from dust, water and heat.

Applicable conditions: Essential for any exposed remote node. Wind loading, vibration from PTZ movement, UV exposure, blowing dust and thermal cycling all act on the same mast and enclosure, so mounting and protection should be reviewed as a system rather than as separate accessories.

Reference candidates: The Pole Mount is a relevant mounting candidate for round pillars, utility poles and streetlights, offered in hot-dip galvanized steel or SUS304 stainless steel. The IP66 weatherproof power junction box is a relevant option for consolidating and protecting DC connections and the router. Confirm load capacity, material compatibility and the enclosure rating against the actual installation.

What to verify before selection: Wind and vibration assumptions, mast and bracket loading and safety factor, material compatibility and corrosion control, panel mounting angle, sealed cable entry, drainage, surge and lightning protection, grounding, and service access. A junction box alone does not prove the whole node is weatherproof.

4. Backhaul and Remote Operations

Engineering task: Move video, alarms and PTZ control between the remote node and the operations center, and allow the node to be monitored, reset and updated without a site visit.

Applicable conditions: Point-to-point wireless backhaul may be evaluated where trenching fiber is impractical and a suitable line-of-sight route exists. Cellular backhaul is a relevant option where coverage is available. Where the project requires continuous high-bitrate streaming, both the backhaul and the power budget must be sized for the resulting traffic, because continuous transmission is itself an energy cost.

Reference candidates: The 10km Wireless Bridge CPE outdoor is a relevant point-to-point backhaul candidate where a clear line-of-sight path exists; its product page describes a 5.8GHz 802.11ac link with a directional antenna. A cellular or mixed path is a relevant option where line of sight cannot be achieved. The target VMS or edge platform is the integration path to be tested.

What to verify before selection: Line of sight and Fresnel clearance, distance, throughput, latency, link margin and failover, stream formats and codecs, PTZ control transport, local recording fallback, remote reset and firmware update path, and interoperability tested against the actual VMS version. A rated link distance is not a guarantee of throughput or latency at every deployment.

Engineering Decisions Before Final BOM

The following decisions should be closed before a final bill of materials is issued. Each one changes the camera load, the storage, the PV sizing or the network design.

Load and Duty-Cycle Definition

• List every load in the node: PTZ camera, IR/illumination, wiper, heater or defroster, router or bridge, edge device and any auxiliary sensor;
• Record the power draw of each load in each operating mode, not only a single nominal figure;
• Define the camera duty cycle: how often PTZ movement, presets and tours occur, and what fraction of the time IR illumination is active;
• Define whether the backhaul transmits continuously or only on event, and the resulting energy cost;
• Build a daily energy budget in watt-hours from these figures rather than from a nameplate rating;
• State the autonomy target in hours or days of full operation with no solar input.

PV and Battery Sizing Inputs

• Use the worst-month solar resource for the site, not an annual average, and apply a derating for dust, soiling, temperature and cable losses;
• Size the battery against the autonomy target, the usable depth of discharge and the low-temperature capacity of the chosen chemistry;
• Confirm the charge-controller type and rating, including MPPT where appropriate and temperature compensation;
• Confirm the recharge behaviour after a low-sun event, not only the discharge autonomy;
• State the low-voltage cutoff and the behaviour of the node below it;
• Record the manufacturer's stated battery operating temperature and any derating that applies at the site.

Site Geometry, Orientation and Environmental Exposure

• Document panel orientation, tilt angle and any seasonal adjustment plan;
• Identify shading from terrain, structures, vegetation and the node's own mast across the year;
• Record the site's dust, sand, salt or snow exposure and the cleaning interval it implies;
• Record ambient temperature range, wind loading and any vibration source;
• Confirm mounting height, maintenance access and the ability to reach the panel and battery;
• Confirm lighting and illumination requirements against the night-time detection task.

Communications and Remote Maintenance

• Confirm the backhaul path, line of sight and any failover to a second carrier or link;
• Confirm how the node is reset remotely after a controller fault or low-voltage shutdown;
• Confirm how battery state of charge, daily harvest and system voltage are logged and monitored;
• Confirm how firmware, configuration and camera presets are updated without a site visit;
• Confirm the local recording or edge fallback when the link is unavailable;
• Confirm who receives an alert and how a fault is escalated.

Acceptance Testing

Before approving a final configuration, define how the project will verify:

• Measured load and duty cycle against the design figures over a representative period;
• Battery autonomy through a controlled no-solar or reduced-solar event;
• Recharge performance and recovery after a low-voltage event;
• Camera field of view, illumination and image quality at the required positions and zoom levels;
• Backhaul throughput, latency and link stability under representative conditions;
• Recording, event retrieval, alarms and VMS integration;
• Environmental protection, mounting stability and maintenance access;
• Remote reset, monitoring and update workflow, with the evidence retained for commissioning.

Reference Configuration Matrix

This matrix is a planning aid. It is not a fixed bill of materials, and it does not mean that every project requires every role or every listed product.

RFQ Preparation Checklist for Solar Off-Grid Projects

Share the following information before requesting a final configuration:

1. Site location, terrain and the asset or zone to monitor;
2. Camera load — power draw of each camera mode and the number of cameras per node;
3. IR/illumination duty cycle — how long IR is active per day and at what intensity;
4. Router/backhaul load — power draw and duty cycle of the bridge, router or cellular modem;
5. Any wiper, heater or defroster and its seasonal energy cost;
6. Battery autonomy target — hours or days of full operation with no solar input;
7. Worst-month solar resource for the site and the assumed derating for dust and temperature;
8. Panel orientation, tilt and shading across the year;
9. Charge controller type and rating, including MPPT and temperature compensation;
10. Battery chemistry and usable capacity, and the site's operating temperature range;
11. Low-voltage cutoff and the node's behaviour below it;
12. Surge and lightning protection and the grounding approach;
13. Mounting type, mast height, wind and vibration assumptions, and load safety factor;
14. Remote reset, monitoring and maintenance workflow, including how battery health is logged;
15. VMS, NVR or edge recording requirement, protocols and the target software version;
16. Local recording fallback and retention;
17. Commissioning evidence — measured load, autonomy test and acceptance criteria;
18. Installation access, quantity and project timeline.

Solar Off-Grid Quote Red Flags

Be cautious when a quotation:

• Gives a solar panel or battery size without a measured load and duty cycle;
• Treats a single panel-and-battery product as a guaranteed kit for every PTZ camera;
• Uses an annual-average solar figure instead of the worst-month resource;
• Presents autonomy or uptime as a guarantee without a stated load, autonomy target and solar input;
• Lists a wireless distance without line of sight, throughput and latency conditions;
• Describes a battery without stating chemistry, operating temperature or low-voltage cutoff;
• Says “weatherproof” without an ingress rating and a stated surge/grounding approach;
• Presents a reference configuration as a fixed standard kit when the final configuration has not been identified.

Request a Solar Off-Grid Surveillance Configuration

A solar off-grid surveillance node should be evaluated as a system: load, storage, generation, protection, mounting, backhaul, platform integration and remote maintenance all affect whether the node stays online through a low-sun period.

If you are planning a remote, unmanned, off-grid monitoring project, share:

• Site location, terrain and the monitored zones;
• Camera load and the number of cameras per node;
• IR/illumination, wiper and heater duty cycles;
• Backhaul type and the router or bridge power draw;
• Battery autonomy target and the worst-month solar resource;
• Panel orientation, tilt, shading and dust conditions;
• Mounting, wind and maintenance access constraints;
• Existing VMS, NVR or edge environment and the required protocols;
• Remote reset and monitoring requirements;
• Approximate quantity, installation access and project timeline.

Our engineering team can help evaluate the camera, storage, generation, protection, backhaul and monitoring configuration for the project. Final selection and quantities are confirmed after a site survey and acceptance test.

Request a Solar Off-Grid Surveillance Configuration

Related Products

The following products are reference candidates for different system roles in a solar off-grid configuration. They are relevant options for evaluation and are not presented as a standard kit or a guaranteed fit for every project.

• IRM mini outdoor PTZ camera — a relevant compact outdoor PTZ candidate for remote nodes where a smaller load helps the energy budget.
• IRS2 IR outdoor speed dome camera with air wiper — a relevant candidate where dust, condensation or spray buildup on the window is a recurring issue.
• 300W 180AH Solar Panel Energy Power System — a relevant higher-capacity generation and storage candidate for combined camera and backhaul loads, subject to a load and resource calculation.
• 120W Industrial Solar Kit — a relevant lower-draw generation and storage candidate for a single camera with a router or bridge.
• Pole Mount — a relevant mounting candidate for round pillars, utility poles and streetlights.
• 10km Wireless Bridge CPE outdoor — a relevant point-to-point backhaul candidate where a clear line-of-sight route exists.
• IP66 weatherproof power junction box — a relevant option for consolidating and protecting DC connections and the router.

Confirm the configuration, quantities, interfaces and ratings for each role against the site survey before selection.

Sources and Verification Notes

Each source below is listed with what it is used to support and what it does not establish.

1. Installation Instruction for Solar Panel Matched with PTZ Camera — company installation guidance used for the panel-to-camera assembly and mounting discussion. It describes an installation approach and does not provide site-specific sizing, autonomy or acceptance results.
2. How to Calculate Wattage Needs of Solar Panels and Lithium Batteries for Speed Dome Camera — company guidance used for the load, duty-cycle and battery-sizing method. It is a calculation method, not a guarantee that any stated panel or battery figure fits a given site.
3. Best Solar-powered PTZ Cameras to Select and Install — company selection guidance used to frame the camera role in a solar off-grid node. It supports candidate selection, not a guarantee of performance for a specific project.
4. PVWatts® Calculator — used as a method reference for site solar-resource and worst-month irradiance inputs. The tool produces modeled estimates with assumptions and uncertainties for a location; it does not replace on-site measurement or a project-specific design review.
5. Solar Integration: Solar Energy and Storage Basics (U.S. Department of Energy) — used as a general reference for how PV generation, storage and load interact. It describes general principles and does not specify this node's sizing, products or autonomy.

Verification note: Any load, panel, battery, autonomy, temperature, ingress or distance figure on this page is a planning reference only and is conditional on the site and configuration. Where a figure is not confirmed for the proposed configuration, treat it as subject to a site survey and acceptance test. Project teams should request the current datasheet and test basis for each candidate before including a figure in a tender or public claim.
