Recommend system: (support one speed dome camera)

• working 1-2 days:  200W+120AH
• working 3-5 days:  300W+180AH
• working 5-10 days:  400W+240AH

Package Included:

100W Solar Panel:

• Type: Monocrystalline silicon;
• Power: up to 100W
• Working range: -40°-85°;
• Working voltage: 18V
• Frame material: high quality aluminum alloy
• Conversion performance: 18%;
• Dimensions: 150*54cm
• Weight: 8.3KG;
• Service life: >25 years

60AH Ternary lithium battery:

12V 60AH ternary polymer lithium battery,

protection circuit, overshoot protection, over discharge protection, short circuit protection, over current protection, high temperature protection.

High energy density, small size, no need to bury, long life, more than 1000 charge and discharge times.

Digital display controller:

Intelligent digital display, working status at a glance, support the maximum charge and discharge current 30A 12V overshoot, anti-over-discharge. Trickle charging to extend battery life.

Boost power supply:

12V boost 24V power supply for 24V dome

Stainless steel waterproof box:

Standard 40*50 cm stainless steel equipment box, used to place batteries, controllers, switches and other accessories, send a pole bracket, to prevent battery plug-in, better protect the battery.

Solar panel bracket:

Solar panel double board bracket set + single board bracket set (can be pole, roof, ground multiple installation)

Comes with accessories:

The solar panel includes a custom 3 m cable (no need to manually wire),

1 m 12V DC line, and the bridge uses POE power supply module.

The battery board is assembled with a wrench and the controller is mounted with a screwdriver.

Download document：

 Features:

• 5.8GHz frequency for diversification;
• 5.8G frequency super anti-interference;
• Multiple operation modes to meet different user needs;
• Full Gigabit ports;
• Timed Reboot.

What’s in the box?

• -Wireless Bridge
• -Power Adapter
• -Bracket
• -User Manual

Wall mount Bracket is used with the corresponding equipment and is not sold separately.

Weight: 0.6KG

The Ceiling / Pendant Mount is used with the corresponding fengtaida Ptz equipment and is not sold separately.

Power Bracket is used with the corresponding equipment and is not sold separately.

Weight: 2.58KG

Direct-drive PTZ system is a remarkable breakthrough that overcomes the limitations and weaknesses of traditional belt-driven systems. The superior performance of this system is clearly evident. The quiet operation of direct drive PTZ system is especially desirable in noise sensitive environments such as museums, hospitals, and offices. Our PTZ bullet camera offers precise and fast rotation, with a 355° pan and a tilt range of -60° to 60°, allowing for wide-area surveillance. The camera is enclosed in an IP67-rated housing suitable for outdoor use, providing excellent protection against dust and water. The camera is easy to install with the included pedestal mount. Combined with the dual-lens system, this camera is a powerful surveillance tool for any environment. Its impressive range and reliability make it the perfect choice for keeping an eye on your home or business.

The shape and parameters of speed domes are for reference only. Please contact us for specific requirements.

AVAILABLE MODELS

• IRW2D-E3785  8M 1/1.8" 6~180mm 37X
• IRW2D-E3745  4M 1/1.8" 6.5 ~ 240mm 37X
• IRW2D-E4425  2M 1/2.8" 6.9~303mm 44X
• IRW2D-E3025  2M 1/2.8" 4.7～141mm 30X
• IRW2-E3025T  Optical: 2M 1/2.8" 4.7mm~141mm 30X  (Thermal: 25mm Fixed Thermal Lens; 640x512 Resolution)

• IRW2-E3525T  Optical: 2M 1/2" 6mm~210mm 35X   (Thermal: 25mm Fixed Thermal Lens; 640x512 Resolution)

SPECIFICATIONS (IRW2D-E4425)

VIDEO

Image Sensor

1/2.8" CMOS

Max. Resolution

2688 x 1520

Scanning Mode

Progressive Scan

Lens Type

AF Zoom Lens

Focal Length

f=6.9-303mm

Aperture

F1.6~F6

Iris Control

DC Auto Iris (HALL SENSOR)

Angular Field of View

D 58.9°~ 1.5°

Min. Illumination

Color: 0.005lux@ (F1.5, AGC ON), B/W: 0.001Lux@F1.2

Dynamic Range

120dB (True WDR)

Electronic Shutter Speed

1s to 1/100,000s,

Day and Night

Day/Night/Auto/Customize/Schedule

IR Distance (LEDs)

500 m/1640.42ft

Image Setting

Exposure, White Balance, Self-Adjusting Video Mode(Sharpness,

Contrast, Colors, Brightness Control)

Backlight Compensation

-

Mirroring / Pivot

Horizontal / Vertical

Image Stabilizer

Yes (EIS)

Privacy Masking

8 Zones

Intelligent Video

Human/Vehicle Classification, region entrance detection;region exiting detection

Auto Tracking

Yes

Video Out

1 Terminal Block

PAN / TILT / ROTATE

Pan Range

360° (Endless)

Pan Speed

Pan: Manual Speed 0.1°-200°/sec (preset 0.1°-250°/sec)

Tilt Range

100° (-10~90°)

Tilt Speed

Tilt: Manual Speed 0.5°-100°/sec (preset 0.1°-120°/sec)

Preset

max 200°/sec

NETWORK

Video Compression

H.265, H.264 (MP), M-JPEG

Intelligent Codec

Supported

Bitrate Control

H.265- CBR / VBR

Audio Compression

G.711/AAC/G.722/G.726

IP Camera Protocol

ONVIF,GB28181

Max. Frame Rate

25/30fps : 2688 x 1520(WDR)

Supported Resolution

2688 x 1520, 1920x1080, 1280x960

Multi-video Streaming

Triple Streaming

Network Protocols

TCP/IP,HTTP,DHCP,DNS,DDNS,RTSP,PPPoE,SMTP,NTP,UPnP

Security

SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS

Remote Access Client

NVR Connection, Web

Ethernet

RJ45 (10/100BASE-T)

Recording Session

Buffer (NLTSrec)

Yes (Up to 60MB)

Edge Storage

micro SD (Up to 256GB)

ALARM AND EVENT

Trigger Event

Motion Detection, Alarm in, Tampering, Trip Zone

Event Notification

Remote S/W, Email (with Image)

Audio In/ Out

1 (LINE IN; bare wire)

Alarm In / Out

Yes

ENVIRONMENTAL

Vandal Proof Casing

IK10

Outdoor Ready

IP66

Operating Temperature

-45°C ~ +60°C (-49°F ~ +140°F)

Operating Humidity

0% ~ 90%

ELECTRICAL

Power Source

DC12/ AC24V：36W

Power Consumption

AC24/DC12 V~, 0.6A, 8W,

PoE, 50-57V, 20.3W

AC24/DC V~, 3A, 45W,

PoE, 50-57V, 60.0W

Approvals

FCC, CE

MECHANICAL

Dimensions

Ø184mm x 310mm

Weight

8kg (17.637 lbs)

The shape and parameters of speed domes are for reference only. Please contact us for specific requirements.

AVAILABLE MODELS

• IRW2-E3785  8M 1/1.8" 6~180mm 37X
• IRW2-E3745  4M 1/1.8" 6.5 ~ 240mm 37X
• IRW2-E4425  2M 1/2.8" 6.9~303mm 44X
• IRW2-E3025  2M 1/2.8" 4.7～141mm 30X

• High quality imaging with 8 MP resolution
• 1/1.8" progressive scan low lux CMOS sensor
• H.265, H.264 or MJPEG
• 50x optical zoom and
• Starlight Laser IR distance up to 1000 m
• Crash-proof aluminum alloy shell
• Wide temperature tolerance (-40°C ~ 70°C)
• Built-in SD card slot for local storage
• Support PoE/ AC 24V
• IP66, IK10 (excluding glass window), TVS 6000V
• lightning protection, surge protection and
• voltage transient protection
• Equipped with Mechanical Wiper

AVAILABLE MODELS

IR6-E3085  8M 1/1.8" 6~180mm 30X
IR6-E3245  4M 1/2.9" 4.7 ~ 141mm 32X
IR6-E2545  4M 1/2.9" 4.7~141mm 25X
IR6-E3025  2M 1/2.8" 4.7～141mm 30X

• DC12V Power Supply

Support DC12V, Average Power Consumption 12W-40W. Can save more power when working.

• Patent CTC technology

By used Gore-tex technology, the water vapour in PTZ camera can be eliminated perfectly. Wiper-less design and lens Glass coating technology protects against rain and dust.

CTC technology could make cooling down quickly. Our PTZ cameras can operate perfectly in temperature up to 70℃. With built-in intelligent heater, the stability of PTZ camera is as usual even in temperature as low as-45℃.

Equiped with Auto Temp Control and cool system. Built-in fan and heater for harsh environments ensures best performance in extreme low and hot temperatures

• Defog technology

Balance the internal cooling and heating through 360 degrees controlled air flow to ensure there's no humidity around internal dome. To perform clear image.

• Capture Simultaneously

360°endless horizontal rotation, and tilt 90 degrees. Full 360° over view, Capture every detail with great precision simultaneously. Give super performance

• High-power Night Vision

By used built-in one high-power mono-crystal IR light realizing the synchronous zoom of infrared and camera. Capture every detail with great precision.

• Homing automatically

By used built-in analytic circuit to control the monitoring position accurately and homing automatically while it's deviated away from preset position especially caused by non-human action such like typhoon, violent.

• Durable housing

Housing is Made of aircraft grade aluminum alloy, this camera is ideal for outdoor surveillance. It can be used normally no matter it rains or bad weather. No Corrosion after 300hr salt spray test.

• Up to 200m IR night vision
• Up to 32X optical zoom
• Patent air wiper
• Water and dust resistant (IP66) and IK10
• Auto tracking for human targets based on deep learning

For Speed Dome camera with mechanical wiper

Note:

The World's First “Air wiper”Patented invisible wiper Technology.
By Smart rain sensor，Camera can clear Rainwater & Deducting automatically. Extremely suitable for the harshest environment. Clear rainwater timely and no rain drop, speed dome Camera glass will never be hurt for using invisible wiper. This kinds of wiper can work is up to 60 months. IRS2 Smart wiper will stop working automatically. There's no rain masks/drops on lens glass. Smart wiper can make dedusting and do not hurt glass for using advanced technology, that will help to provide high quality image.

Mechanical wiper
Camera glass will be scratched for using wiper and it will deliver blurred image and Image will be easily sheltered. This kinds of Wiper function usually started by manual. It lifetime is about 3-10 months. Normally it to make wiper stop working only by human operation. Rain traces will be stayed on glass after rain stopped. No Dust removal function because Mechanical wiper will hurt glass surface. To clean dust only can be made by human operation.

AVAILABLE MODELS

IRS-E3082 8M 1/1.8" 6~180mm 30X
IRS-E3242 4M 1/2.9" 4.7 ~ 141mm 32X
IRS-E2542 4M 1/2.9" 4.7 ~ 141mm 25X
IRS-E3022 2M 1/2.8" 4.7～141mm 30X

Pan Tilt Zoom Solution
360 degrees endless horizontal rotation, and 90 degrees downward movement.

Night Vision up to 500m
with 8 pieces of IR LED. The infrared illumination distance can reach up to 100m depending on camera you choose.

Support ONVIF & NVR
Support RTSP / ONVIF / NVR / FTP, Support Sim card and NVR storage for max 12 month long time recording.

Support PoE (optinal)
Work wired or PoE solution. DIY Optional wifi connection for short or long range.

IP66-IK10
Strengthens speed dome performance with an IK10 rated housing against rain, dust, and corrosion. To operate range from -50°C to 75°C temperature.

Scheduled or Auto pattern scan
To schedule Max 250 pattern and Automatically move. Auto Pan and Auto scan to match Auto Focus within 2-3 second simultaneously, saving cost and labors.

Easy to install
Easy to install and set up in minutes. Enables remote monitoring

Highly clear images
With a Max resolution of 4K, Cut edge WDR and Low Light sense lens it produces clear and vivd image.

AVAILABLE MODELS

FA3-E3082 8M 1/1.8" 6~180mm 30X
FA3-E3242 4M 1/2.9" 4.7 ~ 141mm 32X
FA3-E2542 4M 1/2.9" 4.7 ~ 141mm 25X
FA3-E3022 2M 1/2.8" 4.7～141mm 30X

FA3 speed dome For Modular Outdoor Housing Solution, is made of aluminium housing and an 8-inch transparent dome surface. Waterproof reaches IP67 standard and pass CE and FCC certified. Our dome housing Adopts inbuilt stepping motor mechanical technology, minimal and easy to install structure design.

Compatible with most brand camera modules on the market like Dahua, Hikvision, Sony etc. Installing with Wall-mounted and ceiling-mounted are applied to a variety of occasions.

Matched with Full HD or 4K and 20x or 30x optical zoom camera modules, Ideal for an outdoor application like bank or airport, city traffic.

Preset speed can reach 260 degrees per second; This high speed dome models can achieve the best security protection by auto-scan auto cruise without human labour.

AVAILABLE MODELS

FA3-E3082 8M 1/1.8" 6~180mm 30X
FA3-E3242 4M 1/2.9" 4.7 ~ 141mm 32X
FA3-E2542 4M 1/2.9" 4.7 ~ 141mm 25X
FA3-E3022 2M 1/2.8" 4.7～141mm 30X

SPECIFICATIONS (FA3-M3022)

VIDEO

Image Sensor

1/2.8" CMOS

Max. Resolution

1920x1080

Scanning Mode

Progressive Scan

Lens Type

AF Zoom Lens

Focal Length

f=4.7~141mm

Aperture

F1.5～4.0

Iris Control

DC Auto Iris (HALL SENSOR)

Angular Field of View

D60.5°～2.3°

Min. Illumination

Color: 0.005lux@ (F1.5, AGC

ON), B/W: 0.001Lux@F1.2

Dynamic Range

120dB (True WDR)

Electronic Shutter Speed

1s to 1/100,000s,

Day and Night

Day/Night/Auto/Customize/Schedule

Image Setting

Exposure, White Balance, Self-Adjusting Video Mode(Sharpness,

Contrast, Colors, Brightness Control)

Backlight Compensation

-

Mirroring / Pivot

Horizontal / Vertical

Image Stabilizer

Yes (EIS)

Privacy Masking

8 Zones

Intelligent Video

Human/Vehicle Classification, region entrance detection;region exiting detection

Auto Tracking

Yes

Video Out

1 Terminal Block

PAN / TILT / ROTATE

Pan Range

360° (Endless)

Pan Speed

Pan: 180°/sec

Tilt Range

90° (-0~90°)

Tilt Speed

Tilt: 120°/sec

Preset

max 200°/sec

NETWORK

Video Compression

H.265, H.264 (MP), M-JPEG

Intelligent Codec

Supported

Bitrate Control

H.265- CBR / VBR

Audio Compression

G.711/AAC/G.722/G.726

IP Camera Protocol

ONVIF,GB28181, Hikvision agreement, dahua agreement

Max. Frame Rate

25/30fps (1920x1080)

Supported Resolution

1920x1080, 1280x960,

Multi-video Streaming

Triple Streaming

Network Protocols

TCP/IP,HTTP,DHCP,DNS,DDNS,RTSP,PPPoE,SMTP,NTP,UPnP

Security

SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS

Remote Access Client

NVR Connection, Web

Ethernet

RJ45 (10/100BASE-T)

Recording Session

Buffer (NLTSrec)

Yes (Up to 60MB)

Edge Storage

micro SD (Up to 256GB)

ALARM AND EVENT

Trigger Event

Motion Detection, Alarm in, Tampering, Trip Zone

Event Notification

Remote S/W, Email (with Image)

Audio In/ Out

1 (LINE IN; bare wire)

Alarm In / Out

Yes

ENVIRONMENTAL

Vandal Proof Casing

IK10

Outdoor Ready

IP67

Operating Temperature

-40°C ~ +60°C

Operating Humidity

0% ~ 90%

ELECTRICAL

Power Source

AC24V：45W

Power Consumption

AC24 V~, 0.6A, 15W,

50/60Hz PoE, 50-57V,

20.3W

Approvals

FCC, CE

MECHANICAL

Dimensions

Weight

Pending caculate

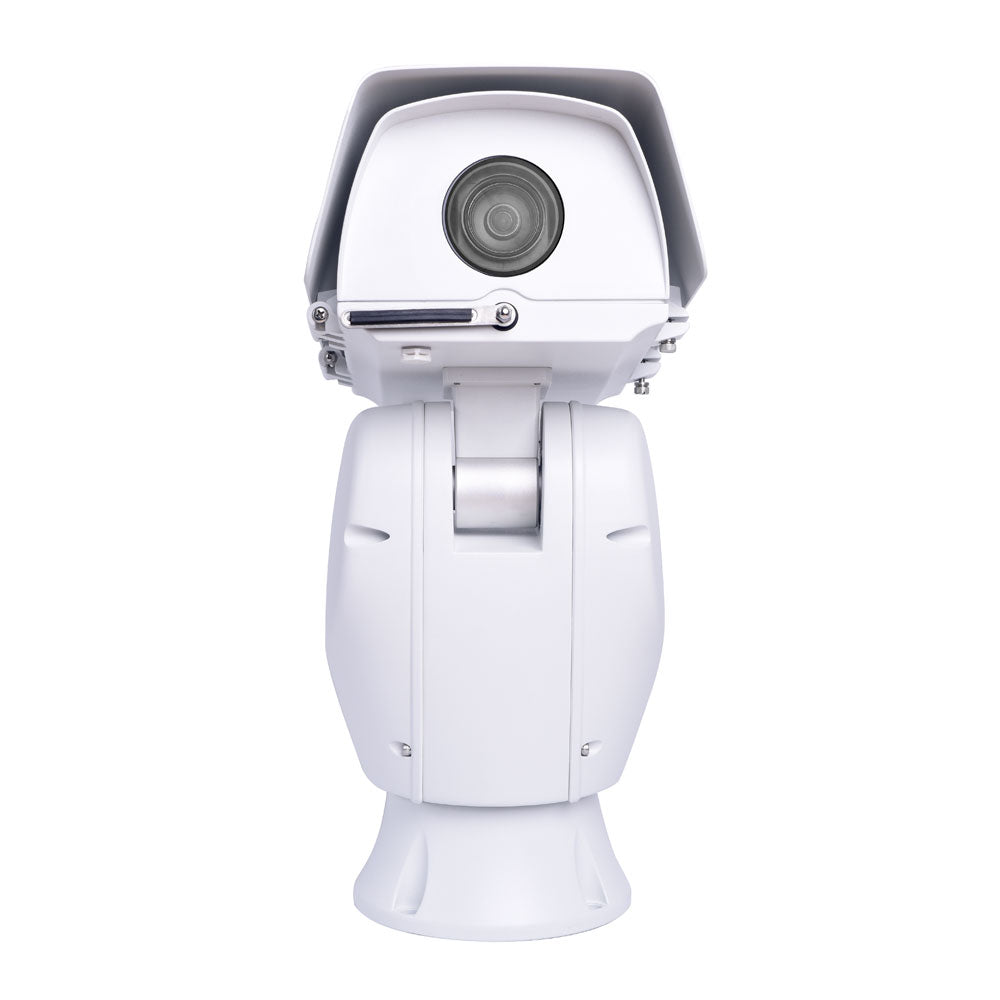

AVAILABLE MODELS

FTD-PTZD508 8M 1/1.8" 6~300mm 50X
FTD-PTZD504 4M 1/1.8" 6~300mm 50X
FTD-PTZD902 2M 1/1.8" 6~540mm 90X
FTD-PTZD682 2M 1/1.8" 6~408mm 68X
FTD-PTZD502 2M 1/2" 6~300mm 50X

High Resolution Images

Provides full real-time 1080P HD resolution visible light images and 960P resolution thermal images. Built-in gamma compensation, colour enhancement and digital detail enhancement (DDE) engines to deliver superior HD video images and fine image detail.

Multispectral All Weather Detection

Integrated visible light and infrared thermal imaging detection for various harsh weather environment. It all can be imaged effectively in total darkness at night, low light, low contrast, direct sunlight, scrubby areas, bad weather, smoke and hazy weather conditions. And it provides real-time visual assessment and recognition, area intrusion and alarms, target tracking and alarms, offering all-weather motion target detection and clear moving images.

Long Range Detection and Target Discovery

Optional 16-1000mm/20-1200mm ultra-long, autofocus visible HD all-in-one machine with optional uncooled thermal imaging, equipped with 25-225mm/25--300mm continuous zoom lens with advanced simultaneous auto-zoom and fast focus algorithm, the lens quickly zooms to a specified magnification depending on the size of the target's field of view, while focusing on a specified position for fast detection and identification of defensive targets. It avoids the problems of inaccurate judgement, inaccurate focus, large control delays and loss of targets when the target is at a distance by manual focus.

Laser Fill Light and Ranging

It provides a high efficiency laser fill light system with adjustable optical axis centre, changing the fill light angle simultaneously with the all-in-one lens zoom, providing an effective, suitable and accurate light source for visible light images at very low illumination. The laser is a highly effective, suitable and accurate field of view supplement for visible images at very low illumination levels. Also a  safety laser is used to assist with accurate object distance measurement of the inspection target.

Intelligent Tracking/Deep Learning Tracking

With full-screen scanning of the thermal or visible light image, the target is locked within 400MS of detection, and with the support of intelligent algorithms, the head is linked to control the orientation movement. The photoelectric system with deep learning tracking algorithm can mark the target and also intelligently avoid obstacles and re-detect, lock and track the target.

Single IP Fusion Encoding and Output

The thermal and visible dual channel video enables dual channels to be encoded and intelligently computed and controlling gimbal movements with minimal latency under the same SOC. The images can be output on a single IP, linkage controlled and accepted  platform calls and management.

High Speed&High Precision Servotable

The servo system is a U-shaped turntable with high speed direct drive total bearing and photoelectric coaxial encoder, positioning accuracy up to 0.01°, high stability, high precision and low centre of gravity. Real-time feedback of orientation, pitch angle, focal length, focus value, can be quickly positioned and continuous tracking scanning, to achieve all-round, no blind spots monitoring with self-locking support. The modular design of the circuit board allows for easy debugging and maintenance upgrades

Beidou and Electronic Compass Auxiliary Positioning

This equipment is integrated with the Beidou positioning system to implement accurate physical positioning of moving targets such as vehicle-borne and ship-borne, in order to facilitate centralised management, dispatch and command. The equipment is supported by an electronic compass for accurate data transmission of the equipment's working status and attitude, so that the command centre can have precise control and scientific analysis of the equipment.

Stable&Reliable, high protection leve

The integrated alloy die-cast housing, with its original new high strength shock and wind resistant structure, increases the product's service life and enhances its stability over long periods of time. Equipped with a sunshade and thermostat system to keep the lens clean and provide clear images at all times. Fully sealed design with an overall triple-proof spray treatment including Stainless steel Screws, connectors, leads and all related accessories can all meet constant temperature, waterproof, dustproof and corrosion resistance, support lightning and surge protection. Protection class IP66.

Extensive Interfaces

It provides power, network, CVBS, alarm in/out, audio in/out, memory card and RS485 line control, with optional SDI output interface. Functional interfaces are optional to meet the physical signal access to third party devices or systems; to enable diversified sensing and application of devices.

Full Compatibility and packages, Networked Operation and Management

This system can support Onvif、GB/T 28181 protocols. It can easily realize access to all kinds of networked command centers, and the equipment can work together with multiple machines. Under the deployment of the unified policy of the network platform, the network management, command and dispatch and unified arming of equipment can be realized; SDK development package can be provided to a secondary development basis for users' in-depth applications.

RF inhibitor with FR 1.5g/2.4g and 5.8g is optional.

High Definition Image Resolution

Provide Full Real-time 1080P HD Resolution Visible Light Images and 960P Resolution Thermal Imaging Images. Built-in Gamma Compensation, Color Enhancement and Digital Detail Enhancement(DDE) Engines, Provide Superior HD Video Images and Exquisite Image Detail.

Multi-spectral All-weather Monitoring

Visible Light and Infrared Thermal Imaging Detection Integration, adapted to a variety of adverse weather conditions. In the areas of Dark Night, Insufficient Light, Low Contrast, Direct Sunlight, Bush and Jungle, bad weather conditions such as rain, snow, smoke and haze can be effectively imaged. Provide real-time Visual Evaluation and Visual Alarm Recognition, Fire Detection, Area Intrusion, Target Tracking Alarm, provide all-weather Motion Detection and clear and transparent moving images.

Long-range Detection and Target Discovery

Optional 300/500/800mm Ultra-long Focal Visible Light High Definition Camera Module, 80mm ~ 210mm Infrared Thermal Image Detection Lens are optional.  Integrated with advanced Synchronous Auto-zoom and Fast Focusing Algorithm, combined with Radar Linkage to provide the position&distance information of UAVs. The Lens can quickly zoom to a specified multiples and focus to a specified position, which can quickly detect and identify the suspicious low-speed aircraft targets in the air.  Avoiding the problem of inaccurate system judgement and inadequate automatic focusing when UAV is at a long distance.

Intelligent Tracking

After the target is detected, locking the target immediately and then linkage Illntelligent Platform to rotate to track the target automatically through Thermal Imaging or Visible Light Images.

Accurate "Capture" over Long Distance

Large Antenna Direction Angle and No Need Aiming, it can interfere and shield all Satellite Positioning Singals in a certain range, including: UHF/GPS/Beidou/Glonas/Galileo;  And simultaneously it can interfere and shield ISM 2.4G and ISM 5.8G Bands commonly used by UAV, forcing UAV to interrupt the Remote Control, Image Transfer Positioning and Singals to achieve the functions of Forced Landing/Return Flight/Hovering, long distance of interference, within 3,000 meters of Open SpaceIntelligent Tracking / Deep Learning Tracking

Image Shake Correction EIS

Support Electronic Image Anti-shaking, which compensates for Image Blurring caused by Low Frequency Vibration and improves Image Sharpness under Slight Shaking. Optional Functions.

Single IP Output

Thermal Imaging and Visible Light Dual-channel Video can achieve Dual-channel Input, and Single IP Output through a unified Fusion Encode.

Network Management

The System supports RS485 or Ethernet Protocol for unified network management. Each channel has independent switches and supports Automatic Power Level Adjustment. Optional Function.

High Precision PTZ

PTZ adopts Turbo-worm Transmission Technology, which has strong stability, high accuracy and Low Center of Gravity. High-precision Stepper Motor provides High-precision Pre-positioning and Self-learning Trajectory, with Full Digital Control, it can locate arbitrarily and Tracking Scaning continuously, realize omni-directional and non-blind spot monitoring, and support self-locking.

Stable and Reliable

Integrative Alloy Pressure Casting Housing, Innovative High-strength Anti-seismic and Anti-strong Wind Structure, increase the service life of products, enhance the stability of long-term use. Equipped with Sunshade, Wiper and Heating Dehumidification System, keep lens clean and provide clear images at any time.

Modular Design

Modular Design, Double Independent Power Supply System Design. It can change the Signal Suppression System on both sides according to the customer's requirements, and customize various working modes according to the customer's requirements. Through the Double Control of Serial Port and Network, PTZ can realize the function of "where you point to" and "where it will attack", and the real-time return rate of angle information is high.

Protection Level

Full Sealed Design, Integral Three-proof Spraying Treatment including Stainless Steel Screw, Joint, Lead Wire and other related accessories meet the requirements of Three-proof (Moisture-proof, Mildew-proof, Salt fog-proof). Constant Temperature, Water-proof, Dust-proof, Corrosion-resistant, support Lightning Protection, Surge Prevention, Breakout Prevention Functions, Protection Level IP66.

Rich Interfaces

Provide PowerSupply, Network, CVBS, Alarm Input&Output, Audio Input&Output, Storage Card and RS485 Wire-control; Optional Interface.

Rich Compatibility and Matching

Provide Onvif, GB/T 28181 Protocol Compatibility, and offer SDK and CMS Management Platform System.

Wall mount Bracket is used with the corresponding equipment and is not sold separately.

Weight: 0.6KG

The Ceiling / Pendant Mount is used with the corresponding fengtaida Ptz equipment and is not sold separately.

Power Bracket is used with the corresponding equipment and is not sold separately.

Weight: 2.58KG

Recommend system: (support one speed dome camera)

• working 1-2 days:  200W+120AH
• working 3-5 days:  300W+180AH
• working 5-10 days:  400W+240AH

Package Included:

100W Solar Panel:

• Type: Monocrystalline silicon;
• Power: up to 100W
• Working range: -40°-85°;
• Working voltage: 18V
• Frame material: high quality aluminum alloy
• Conversion performance: 18%;
• Dimensions: 150*54cm
• Weight: 8.3KG;
• Service life: >25 years

60AH Ternary lithium battery:

12V 60AH ternary polymer lithium battery,

protection circuit, overshoot protection, over discharge protection, short circuit protection, over current protection, high temperature protection.

High energy density, small size, no need to bury, long life, more than 1000 charge and discharge times.

Digital display controller:

Intelligent digital display, working status at a glance, support the maximum charge and discharge current 30A 12V overshoot, anti-over-discharge. Trickle charging to extend battery life.

Boost power supply:

12V boost 24V power supply for 24V dome

Stainless steel waterproof box:

Standard 40*50 cm stainless steel equipment box, used to place batteries, controllers, switches and other accessories, send a pole bracket, to prevent battery plug-in, better protect the battery.

Solar panel bracket:

Solar panel double board bracket set + single board bracket set (can be pole, roof, ground multiple installation)

Comes with accessories:

The solar panel includes a custom 3 m cable (no need to manually wire),

1 m 12V DC line, and the bridge uses POE power supply module.

The battery board is assembled with a wrench and the controller is mounted with a screwdriver.

Download document：

 Features:

• 5.8GHz frequency for diversification;
• 5.8G frequency super anti-interference;
• Multiple operation modes to meet different user needs;
• Full Gigabit ports;
• Timed Reboot.

What’s in the box?

• -Wireless Bridge
• -Power Adapter
• -Bracket
• -User Manual

The shape and parameters of speed domes are for reference only. Please contact us for specific requirements.

AVAILABLE MODELS

• IRW2D-E3785  8M 1/1.8" 6~180mm 37X
• IRW2D-E3745  4M 1/1.8" 6.5 ~ 240mm 37X
• IRW2D-E4425  2M 1/2.8" 6.9~303mm 44X
• IRW2D-E3025  2M 1/2.8" 4.7～141mm 30X
• IRW2-E3025T  Optical: 2M 1/2.8" 4.7mm~141mm 30X  (Thermal: 25mm Fixed Thermal Lens; 640x512 Resolution)

• IRW2-E3525T  Optical: 2M 1/2" 6mm~210mm 35X   (Thermal: 25mm Fixed Thermal Lens; 640x512 Resolution)

SPECIFICATIONS (IRW2D-E4425)

VIDEO

Image Sensor

1/2.8" CMOS

Max. Resolution

2688 x 1520

Scanning Mode

Progressive Scan

Lens Type

AF Zoom Lens

Focal Length

f=6.9-303mm

Aperture

F1.6~F6

Iris Control

DC Auto Iris (HALL SENSOR)

Angular Field of View

D 58.9°~ 1.5°

Min. Illumination

Color: 0.005lux@ (F1.5, AGC ON), B/W: 0.001Lux@F1.2

Dynamic Range

120dB (True WDR)

Electronic Shutter Speed

1s to 1/100,000s,

Day and Night

Day/Night/Auto/Customize/Schedule

IR Distance (LEDs)

500 m/1640.42ft

Image Setting

Exposure, White Balance, Self-Adjusting Video Mode(Sharpness,

Contrast, Colors, Brightness Control)

Backlight Compensation

-

Mirroring / Pivot

Horizontal / Vertical

Image Stabilizer

Yes (EIS)

Privacy Masking

8 Zones

Intelligent Video

Human/Vehicle Classification, region entrance detection;region exiting detection

Auto Tracking

Yes

Video Out

1 Terminal Block

PAN / TILT / ROTATE

Pan Range

360° (Endless)

Pan Speed

Pan: Manual Speed 0.1°-200°/sec (preset 0.1°-250°/sec)

Tilt Range

100° (-10~90°)

Tilt Speed

Tilt: Manual Speed 0.5°-100°/sec (preset 0.1°-120°/sec)

Preset

max 200°/sec

NETWORK

Video Compression

H.265, H.264 (MP), M-JPEG

Intelligent Codec

Supported

Bitrate Control

H.265- CBR / VBR

Audio Compression

G.711/AAC/G.722/G.726

IP Camera Protocol

ONVIF,GB28181

Max. Frame Rate

25/30fps : 2688 x 1520(WDR)

Supported Resolution

2688 x 1520, 1920x1080, 1280x960

Multi-video Streaming

Triple Streaming

Network Protocols

TCP/IP,HTTP,DHCP,DNS,DDNS,RTSP,PPPoE,SMTP,NTP,UPnP

Security

SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS

Remote Access Client

NVR Connection, Web

Ethernet

RJ45 (10/100BASE-T)

Recording Session

Buffer (NLTSrec)

Yes (Up to 60MB)

Edge Storage

micro SD (Up to 256GB)

ALARM AND EVENT

Trigger Event

Motion Detection, Alarm in, Tampering, Trip Zone

Event Notification

Remote S/W, Email (with Image)

Audio In/ Out

1 (LINE IN; bare wire)

Alarm In / Out

Yes

ENVIRONMENTAL

Vandal Proof Casing

IK10

Outdoor Ready

IP66

Operating Temperature

-45°C ~ +60°C (-49°F ~ +140°F)

Operating Humidity

0% ~ 90%

ELECTRICAL

Power Source

DC12/ AC24V：36W

Power Consumption

AC24/DC12 V~, 0.6A, 8W,

PoE, 50-57V, 20.3W

AC24/DC V~, 3A, 45W,

PoE, 50-57V, 60.0W

Approvals

FCC, CE

MECHANICAL

Dimensions

Ø184mm x 310mm

Weight

8kg (17.637 lbs)

AVAILABLE MODELS

IR6-E3085  8M 1/1.8" 6~180mm 30X
IR6-E3245  4M 1/2.9" 4.7 ~ 141mm 32X
IR6-E2545  4M 1/2.9" 4.7~141mm 25X
IR6-E3025  2M 1/2.8" 4.7～141mm 30X

IR6-E3025T  Optical: 2M 1/2.8" 4.7mm~141mm 30X
                    Thermal: (25mm Fixed Thermal Lens; 640x512 Resolution)
IR6-E3525T  Optical: 2M 1/2" 6mm~210mm 35X
                    Thermal: (25mm Fixed Thermal Lens; 640x512 Resolution)

Features

• Max thermal image 640x512 Resolution, 25mm Fixed Thermal Lens
• high sensitivity sensor

• Max Powerful 35x optical zoom
• support Temperature measurement function (optional)
• Support various OSD information overlay.
• Accurate focus, high speed, great image effects, precise color reproduction, excellent night vision with low light effects.

Highlight:

Full HD image quality
provides superior Full HD picture quality resolutions outputting live images at 30fps at this resolution. A built-in gamma compensation and color enhancement engine provides superior HD video images.

H.265/H.264/MJPEG
supports H.265/H.264/ compression standard, and it is highly adaptable to front and back-end compatibility, with high-definition image quality, low latency and low bit rate to save network bandwidth and storage space to the maximum.

35x optical zoom
Equipped with a high-resolution 35x optical zoom lens. Integrated with advanced autofocus and fast focus algorithms, it can track objects in a longer field of view and achieve perfect high-speed autofocus.

4A Control
provides built-in broadcast-grade 4A automatic control processing program, which can automatically adjust the white balance, exposure, gain and precisely control the lens aperture according to the environmental scene changes in order to make the image effect and depth of field get better results.

Day & Night ICR
equipped with a day/night ICR, filtering the infrared light that affects the image quality, the daytime image is truly restored, clear and delicate, and the night image is clean and less noisy.

Wide Dynamic + Low Illumination
provides good low Illumination, digital wide dynamic range and strong light inhibition, adaptable to low-light, high-contrast and bright light environments

Dual channel output
This camera supports IP encoding output, and also supports HDMI output HD video.

3D noise reduction
Based on 3D digital noise reduction algorithm, it can eliminate image noise, effectively reduce image noise in low light conditions and improve clarity.

Multi-zone smart OSD
a supports multi-zone intelligent OSD character overlay, supporting national standard characters, time and date, scene name and custom OSD. font size, color, position can be customized.

Pan tilt zoom rotation
Pan: 360° (Endless) Tilt: -10° ~ 90° (Flip), 360 degrees without blind area. suitable for traffic lights, supermarket checkout counters, narrow corridors aisles and other special areas.

Rich interfaces
This movement provides rich interfaces such as Net Port,CVBS, SDXC, Alarm In/Out, RS485, Audio In/Out and power supply.

High scalability
This movement is compatible with ONVIF, GB/T 2818 protocol, provides SDK development kit, and supports CMS system centralized management.
