Product FAQ
Q1What is the primary role of the FTD-16CH Edge AI Box in video surveillance upgrades?
We engineered the FTD-16CH Edge AI Box to transform existing standard IP cameras into intelligent AI endpoints without replacing installed hardware. By pulling RTSP or ONVIF video streams directly over the local network, the device performs real-time edge deep learning analytics across up to 16 channels simultaneously.
Q2What processor and NPU computing power are built into the FTD-16CH AI Box?
The FTD-16CH is powered by an 8-core ARM processor (Cortex-A76 + Cortex-A55 @ 2.4GHz) paired with an embedded high-efficiency NPU delivering 6 TOPS of peak AI inference power, backed by 8GB of RAM and 128GB of high-speed eMMC on-board storage.
Q3Which deep-learning AI detection algorithms are supported out of the box?
The device includes a comprehensive multi-scenario algorithm library: perimeter intrusion, line crossing, human and vehicle classification, PPE safety compliance (hard hat, safety vest detection), smart kitchen rules (chef hat, mask detection), flame and smoke alerts, personnel falling detection, and unattended baggage tracking. Each channel can run up to 10 algorithms simultaneously.
Q4How does the AI Box handle video decoding performance across 16 channels?
The on-board hardware engine supports real-time multi-channel decoding up to 16 channels of 1080P @ 25fps (or 4 channels of 4K UHD video) using H.265 or H.264 compression standards with ultra-low processing latency.

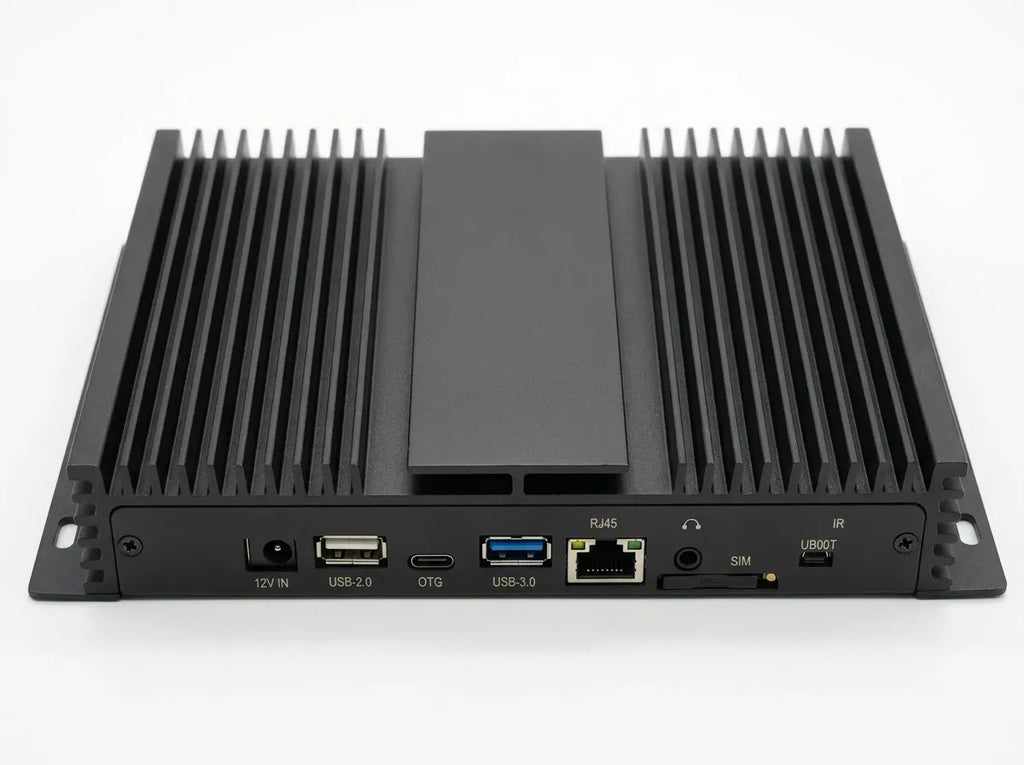

Q5How does the FTD-16CH communicate with third-party software and cloud platforms?
The box provides dual Gigabit Ethernet ports (2× 1000Mbps RJ45) and supports northbound integration via HTTP API, MQTT, and standard GB28181 protocols. Alarm snapshots, JSON metadata, and real-time event coordinates push instantly to client VMS platforms, central monitoring stations, or mobile notification apps.

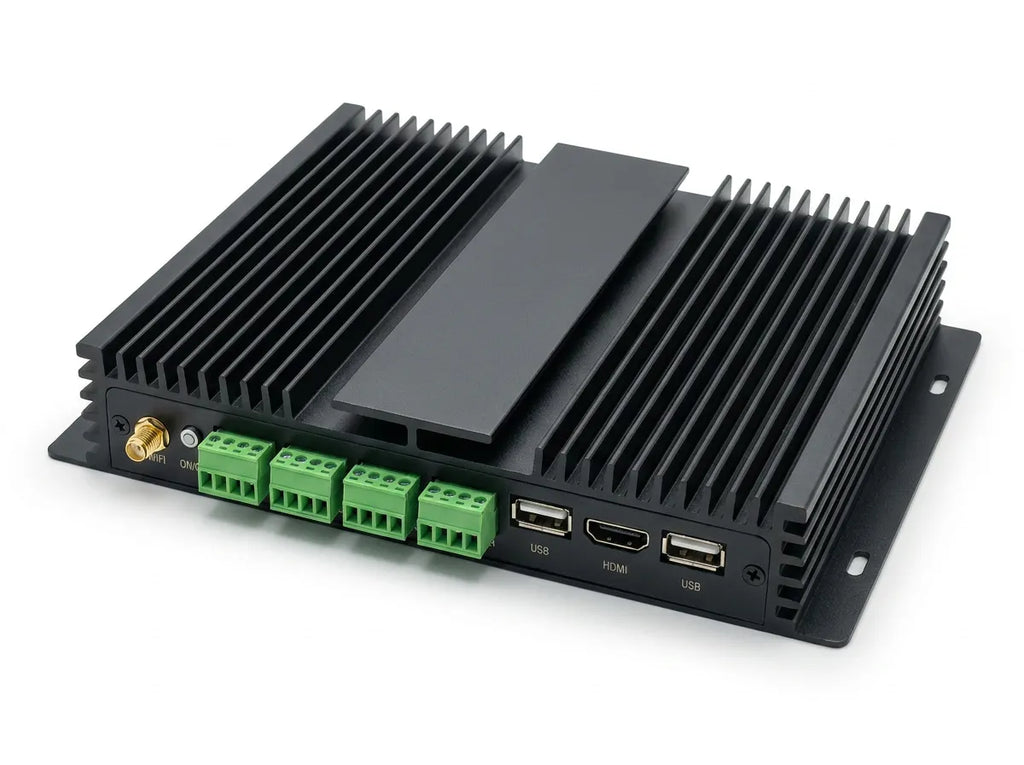

Q6What are the physical dimensions, power draw, and cooling design of the AI Box?
Housed in a rugged aluminum chassis measuring 235mm × 150mm × 62.5mm, the device uses a completely fanless passive thermal dissipation design for silent, maintenance-free operation. It runs on DC 12V/2A power with an energy-efficient typical consumption of just 8W.
Q7Does the AI Box require an active cloud subscription or recurring license fees?
No. The FTD-16CH runs all neural network inferences locally at the network edge. Video streams and analytical metadata stay inside your private local network, eliminating cloud latency, recurring monthly software fees, and data privacy vulnerabilities.
Q8What OEM/ODM customization and algorithm loading options does Fengtaida offer?
Fengtaida provides direct-factory support for system integrators, including custom algorithm retraining, private model deployment, specialized HTTP/MQTT webhook formats, bespoke GUI branding, and tailored hardware I/O configurations.
Related Products
IRW2D Enterprise Thermal EO/IR PTZ Dome Camera — Dual-Spectrum Vision for Enterprise-Grade Perimeter and Thermal Safety
The IRW2D is a high-performance dual-spectrum PTZ camera combining a 640x512 thermal imaging sensor with a 4K visible light camera. It is designed for critical infrastructure monitoring, providing 24/7 visibility through smoke, fog, and total darkness.
Key Features
- Dual-Spectrum Imaging — Simultaneous thermal and 4K visible streams with dual-light fusion for enhanced detail.
- Advanced Thermal Sensor — Uncooled VOx Microbolometer with 640×512 resolution and 12μm pixel pitch for superior thermal sensitivity.
- Precision PTZ Control — 360° continuous pan and -15° to 90° tilt for comprehensive area coverage.
- Intelligent VCA Analysis — Built-in smart rules for line crossing, intrusion detection, and region entry/exit monitoring.
- Accurate Temperature Measurement — Real-time monitoring from -20°C to 150°C with customizable alarm rules.
Technical Specifications
| Visible Sensor | 1/1.8" Sony CMOS, 4K (8MP) |
| Thermal Sensor | Uncooled VOx, 640×512, 12μm, 8-14μm |
| Zoom | 20x Optical Zoom |
| IR Distance | Up to 200m |
| Thermal Lens | 10mm, F1.0 |
| Protection | IP66, IK10 |
Typical Applications
- Industrial thermal monitoring and preventative maintenance.
- High-security perimeter defense and border patrol.
- Fire detection and monitoring in warehouses and forests.
OEM / ODM Available
Fengtaida supports full OEM and ODM customization. Contact our team — we respond within 24 hours.
IRW2S IR Wiper Speed Dome Camera — Precision Monitoring with Integrated Wiper for Harsh Weather Environments
The IRW2S is a specialized speed dome camera featuring a high-torque integrated wiper system, making it the ideal choice for maritime and coastal surveillance. Equipped with a powerful 55x optical zoom, it delivers crystal-clear 4MP imagery over vast distances even in rainy or misty conditions.
Key Features
- Integrated Smart Wiper — Remotely operated wiper ensures a clear view during heavy rain, sea spray, or humid conditions.
- Ultra-Long Range Zoom — 55x optical zoom allows for detailed identification of distant objects.
- Superior Low-Light Performance — 1/1.8" Sony CMOS sensor and 500m IR distance for exceptional night vision.
- Rugged Construction — IP66 weatherproofing and IK10 vandal resistance with internal heater and defogging.
- High-Speed PTZ — Pan speed up to 180°/s with 360° continuous rotation for rapid target tracking.
Technical Specifications
| Image Sensor | 1/1.8" Sony CMOS, 4MP (2688×1520) |
| Optical Zoom | 55x |
| Digital Zoom | 16x |
| IR Range | Up to 500m |
| Speed Control | Pan: 0.1°~180°/s; Tilt: 0.1°~120°/s |
| Special Features | Wiper, Heater, Defog, BLC, HLC, WDR |
Typical Applications
- Ports, harbors, and shipping lanes.
- Coastal surveillance and maritime security.
- Extreme weather highway and bridge monitoring.
OEM / ODM Available
Fengtaida supports full OEM and ODM customization. Contact our team — we respond within 24 hours.
IR6 IR High Speed Dome Camera - Ultra-Long Range 4K Surveillance for Critical Infrastructure
The IR6 series is an industrial-grade high-speed dome camera designed for large-scale outdoor environments. Combining 4K resolution with a massive 500m infrared range, it provides unmatched situational awareness for high-security perimeters and expansive public spaces.
Key Features
- High-Fidelity 4K Imaging - 1/1.8" Sony CMOS sensor delivers sharp 8MP video for forensic-level detail.
- Extended 500m IR - High-intensity infrared LEDs illuminate targets up to half a kilometer away in total darkness.
- Extreme Environment Ready - Operating range from -45C to +70C with TVS 6000V lightning protection.
- Efficient Compression - H.265 / H.264+ support reduces bandwidth and storage requirements by up to 50%.
- Professional PTZ Features - 250 presets and 8 patrol routes with high-precision positioning.
Technical Specifications
| Resolution | 4K / 8MP (3840x2160) |
| Optical Zoom | 20x (6.0mm to 120mm) |
| IR Distance | 500m |
| Frame Rate | Up to 30fps @ 4K |
| Environmental | IP66, IK10, -45C to +70C |
| Surge Protection | TVS 6000V Lightning Protection |
Typical Applications
- Airport tarmac and perimeter security.
- Highways, bridges, and intersection monitoring.
- Large stadium and public square surveillance.
OEM / ODM Available
Fengtaida supports full OEM and ODM customization. Contact our team - we respond within 24 hours.
IRS2 is an outdoor high-speed PTZ dome camera built for continuous monitoring in demanding environments. It combines 36x maximum optical zoom, 8MP maximum resolution and up to 200m infrared night vision in a rugged IP66 housing.
Key Features
- 36x Maximum Zoom: Supports long-range observation and precise target tracking across wide outdoor areas.
- 8MP Maximum Resolution: Delivers detailed video for perimeter, traffic and infrastructure monitoring.
- 200m Infrared Night Vision: Extends visibility after dark without relying on ambient lighting.
- Global Patent Air Wiper: Helps clear water from the lens during rain to maintain usable visibility.
- IP66 Protection: Designed for outdoor installation and normal operation in rain and dust.
Typical Applications
Suitable for perimeter security, traffic monitoring, industrial sites, mines, engineering projects and other outdoor areas that require high-speed PTZ coverage.
IRS 4K IR Outdoor Speed Dome Camera — Crystal-Clear Surveillance, Day & Night
The Fengtaida IRS series is a professional-grade outdoor PTZ speed dome camera built for demanding security environments. Featuring a 4K Sony CMOS sensor, 20x optical zoom, and up to 200m IR night vision, it delivers sharp, reliable footage whether monitoring perimeters, ports, highways, or industrial facilities — in any weather, at any time of day.
Key Features
- 4K Ultra HD Resolution (3840×2160) — Capture license plates, faces, and fine detail at long distances with Sony 1/1.8" progressive scan CMOS
- 20× Optical Zoom + 16× Digital Zoom — Focal length 6mm–120mm, covers wide-area overview and close-up detail in one unit
- 200m IR Night Vision — Smart IR with auto-adjustment ensures clear images without overexposure at any zoom level
- Auto-Tracking — Automatically locks onto and follows moving targets; supports tripwire, intrusion detection, and loitering alerts
- All-Weather Rated IP66 + IK10 — Operates from -45°C to +70°C; TVS 6000V lightning and surge protection for harsh outdoor deployment
- Flexible Connectivity — Supports PoE++ (802.3bt), WiFi, ONVIF, GB28181; up to 20 concurrent users, triple video streaming
- On-Board Storage — Built-in microSD slot supports up to 256GB; NAS network storage also supported
- H.265 / H.264+ Compression — Reduces bandwidth and storage costs without sacrificing image quality
Technical Specifications
| Image Sensor | 1/1.8" Sony Progressive Scan CMOS |
| Max. Resolution | 3840×2160 (4K) |
| Min. Illumination | Color: 0.005 Lux (F1.5, AGC ON) / B&W: 0.001 Lux / 0 Lux with IR |
| Optical Zoom | 20× (Focal Length: 6.0mm – 120mm) |
| Digital Zoom | 16× |
| IR Range | Up to 200m |
| Pan Range | 360° continuous |
| Tilt Range | -15° to 90° (auto flip) |
| Pan Speed | 0.1°–180°/s (manual); 250°/s (preset) |
| Presets | 250 presets; 8 patrol paths (32 presets each); 4 pattern scans |
| Video Compression | H.265 / H.264+ / H.264 |
| Frame Rate | 4K@25/30fps; 1080P@25/30fps; 720P@25/30fps |
| WDR | 120dB |
| Network Protocols | ONVIF, GB28181, HTTPS, RTSP, RTP, TCP/IP, SNMP, FTP, DDNS, 802.1x |
| Power | 24VAC max. 42W / PoE++ 802.3bt (max 18W for IR) |
| Storage | MicroSD up to 256GB; NAS supported |
| Protection | IP66, IK10, TVS 6000V lightning protection |
| Operating Temperature | -45°C to +70°C; Humidity ≤90% (non-condensing) |
| Dimensions | Ø223mm × 372mm |
| Weight | Approx. 8kg |
Available Models
| Model | Zoom | Resolution | IR Range |
|---|---|---|---|
| FTD-IRS-E2082 | 20× | 8MP (4K) | 200m |
| FTD-IRS-E3242 | 32× | 4MP | 200m |
| FTD-IRS-E2542 | 25× | 4MP | 200m |
| FTD-IRS-E3022 | 30× | 2MP (1080P) | 200m |
Typical Applications
- Perimeter security for industrial plants, warehouses, and logistics hubs
- Highway and traffic monitoring
- Port and maritime surveillance
- Campus and large public area security
- Critical infrastructure protection
OEM / ODM Available
Fengtaida supports full OEM and ODM customization — including firmware branding, housing color, lens configuration, and packaging. Minimum order quantities apply. Contact us for a tailored quotation.
Need a quote or custom specification? Contact our team — we respond within 24 hours.
A high-speed, versatile indoor dome camera engineered for commercial offices, banks, retail complexes, and hotel lobbies. The FA3 dome is designed to blend seamlessly into architectural ceilings while delivering silent, lightning-fast pan-tilt-zoom control for real-time indoor coverage.
Key Engineering Highlights
- In-Ceiling Flush Design: Supports both standard wall mounting and flush in-ceiling installation, presenting a neat, professional finish without exposed cables.
- 10x Optical Zoom: Clear optical zoom lens paired with high-definition sensors lets operators monitor cash registers, teller counters, and entrance lobbies with absolute clarity.
- Silent Drive System: High-precision stepper motor drive provides smooth, silent movement, avoiding disturbing patrons or customers during operation.
- Two-Way Audio Matrix: Built-in professional microphone and high-power speaker support clear two-way voice communication and real-time audio analytics.
Engineering Specifications
| Parameter | Value |
|---|---|
| Optical Zoom | 10x Optical / Auto-focus / Premium glass optics |
| Installation Options | In-Ceiling Flush / Ceiling Mount / Wall Mount |
| Audio Support | Two-Way Audio (Built-in mic and speaker) |
| PT Preset Speed | Pan: 120°/s, Tilt: 90°/s |
| Network Interface | 10/100M RJ45, supports PoE (802.3af) |
Typical Field Scenarios
The premier security solution for banking halls, commercial office buildings, high-end hotel receptions, retail checkout zones, airport terminals, and data centers.
Procurement Note: We offer customized casing colors (matte black / polished white), custom software SDKs, and pre-integrated PoE packages for bulk wholesale orders. Request our commercial pricing catalog today.
FTD-FA3-E2540 — 4MP 25x Optical Zoom Indoor Ceiling PTZ Camera
The FA3 series indoor ceiling PTZ camera combines a high-definition 4MP Sony sensor with a powerful 25x optical zoom. Designed for discreet indoor surveillance, it offers exceptional detail and flexible coverage for large interior spaces.
Key Features
- 4MP Ultra HD Resolution — Captures crystal-clear 2688×1520 video for precise identification.
- 25x Optical Zoom — Monitor large areas with incredible detail even from a distance.
- Sony CMOS Sensor — 1/2.9" Sony sensor ensures excellent image quality and color reproduction.
- PoE Support — Simplifies installation by delivering power and data over a single cable.
- High-Speed PTZ — Smooth 360° rotation and 0.1-180°/s pan speed for rapid target tracking.
- Advanced Compression — H.265/H.264+ saves up to 50% on storage and bandwidth.
Technical Specifications
| Sensor | 1/2.9" Sony CMOS |
| Resolution | 4MP (2688×1520) |
| Zoom | 25x Optical, 16x Digital |
| Focal Length | 5.0-125mm |
| Pan/Tilt | Pan 360°, Tilt -15° to 90° |
| Compression | H.265/H.264+ |
| Mounting | Indoor Ceiling Mount |
Typical Applications
- Shopping malls and retail stores
- Hotel lobbies and conference centers
- Warehouse interior monitoring
- Office building security
OEM / ODM Available
Fengtaida supports full OEM and ODM customization for FA3 series PTZ cameras. Contact our team — we respond within 24 hours.
A compact, high-speed outdoor speed dome camera delivering professional long-range tracking in a mini-dome footprint. Packed with a Sony image sensor and advanced laser illumination, the IRM captures crystal-clear footage at night without attracting unwanted attention.
Key Engineering Highlights
- Starvis Low-Light Sensor: Leverages Sony's ultra-sensitive back-illuminated Starvis sensor, capturing vibrant, low-noise video in deep twilight.
- 20x Optical Zoom: Precision-engineered glass lens allows license plate and facial recognition up to 100 meters away, maintaining rapid focus throughout the zoom cycle.
- Synchronized IR Array: High-efficiency ceramic infrared LEDs adjust their beam angle automatically to match the zoom lens, preventing overexposure and hot spots on near targets.
- Vandal-Proof Dome Cover: IP66 waterproof and IK10 vandal-proof housing protects internal gears and lenses from dust, hard knocks, and weather changes.
Engineering Specifications
| Parameter | Value |
|---|---|
| Optical Zoom | 20x optical zoom, auto-focus lens |
| Image Sensor | Sony Starvis CMOS Sensor |
| IR Distance | Up to 100 meters with adaptive sync-zoom infrared |
| Video Output | H.265 / H.264 high-profile multi-streams |
| PTZ Speed | Pan: 0.1° to 100°/s, Tilt: 0.1° to 60°/s |
Typical Field Scenarios
Highly effective for urban city street monitoring, commercial shopping plazas, school campuses, agricultural farms, private estates, and public parks requiring long-range vision in a compact dome enclosure.
Procurement Note: Fengtaida provides custom firmware integration, OEM logo printing, and customized bracket configurations (wall, pendant, or corner) in bulk wholesale packages. Contact us to secure bulk dealer rates.
