Camera |
|
|
Max. Resolution |
1920*1080 |
|
Image Sensor |
1/1.8" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
68x optical, 16x digital |
|
Lens |
|
|
Focal Length |
6.0mm ～ 408mm |
|
FOV |
Horizontal field of view: 61.2° ~ 2.2° |
|
Aperture |
Max. F1.5 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
IR Distance: up to 3000 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-45° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Video |
|
|
Main Stream |
Main Stream: 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest (ROI) |
4 fixed regions for each stream |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Optical Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC/6A, max. 98 W (including max. 88W/98W IR) 802.3bt (PoE++) |
|
Operating Condition |
-40°C to 60 °C. Humidity 90% or less (non-condensing) |
|

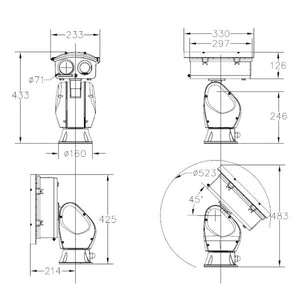

Dimension |
Ø L330.0mm×W233.0mm×H483mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 4000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
Support |
AVAILABLE MODELS
| FTD-PTZH5085 |
| FTD-PTZH5045 |
| FTD-PTZH9025 |
| FTD-PTZH6825 |
| FTD-PTZH5025 |
Scan and Download our catalogs and datasheets for detailed product information.
You may like:
The shape and parameters of speed domes are for reference only. Please contact us for specific requirements.
|
Thermal Module |
|
|
Image Sensor |
Uncooled VOx Microbolometer |
|
Resolution |
640 x 512 |
|
Pixel Size |
12μm |
|
Spectral Range |
8~14μm |
|
Focal Length |
10 mm (±5%) |
|
F Value |
F1.0 |
|
Focus |
Athermalized, Focus-free |
|
Color Palettes |
7 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red) |
|
Angle of View |
46.2°x37.7° (±5%) |
|
Main Stream |
30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288) |
|
VCA |
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene. |
|
Temperature Measurement |
3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line) |
|
Temperature Range |
-20°C to 150°C (-4°F to 1022°F) |
|
Temperature Accuracy |
Max (± 2°C, ± 2%) |
|
Fire Detection |
Dynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable. |
|
Optical Camera module |
|
|
Max. Resolution |
1920*1080 |
|
Image Sensor |
1/2.8" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
20x optical, 16x digital |
|
Lens |
|
|
Focal Length |
4.7mm ～ 94mm |
|
FOV |
Horizontal field of view: 61.2° ~ 2.2° |
|
Aperture |
Max. F1.5 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 180°/s; preset speed: 250°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Video |
|
|
Main Stream |
Optical Camera: Main Stream: 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest |
4 fixed regions for each stream |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Electronic-Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC, max. 42 W (including max. 18 W for IR) 802.3bt (PoE++) |
|
Operating Condition |
-45 °C to 70 °C. Humidity 90% or less (non-condensing) |
|
Dimension |
Ø 223 mm × 372 mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 6000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
Support |
AVAILABLE MODELS
| FTD-IRW2D-E3785 |
| FTD-IRW2D-E3745 |
| FTD-IRW2D-E4425 |
| FTD-IRW2D-E2085 |
| FTD-IRW2D-E3245 |
| FTD-IRW2D-E2545 |
| FTD-IRW2D-E3025 |
The shape and parameters of speed domes are for reference only. Please contact us for specific requirements.
|
Camera |
|
|
Max. ResoSlution |
2688*1520 |
|
Image Sensor |
1/1.8" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.0005 Lux @ (F1.35, AGC ON), B/W: 0.001 Lux@(F1.35, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
40x optical, 16x digital |
|
Lens |
|
|
Focal Length |
6.4 mm to 256mm |
|
FOV |
Horizontal field of view: 61.8°~ 2.06° |
|
Aperture |
Max. F4.6 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
IR Distance: up to 500 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 180°/s; preset speed: 250°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Video |
|
|
Main Stream |
Main Stream: 2688*1520@25/30fps; 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest (ROI) |
4 fixed regions for each stream |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Optical-Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC, max. 42 W (including max. 18 W for IR) 802.3bt (PoE++) |
|
Operating Condition |
-45 °C to 70 °C. Humidity 90% or less (non-condensing) |
|
Dimension |
Ø 223 mm × 372 mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 6000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
Support |
AVAILABLE MODELS
| FTD-IRW2S-E3785 |
| FTD-IRW2S-E3745 |
| FTD-IRW2S-E4425 |
| FTD-IRW2S-E2085 |
| FTD-IRW2S-E3245 |
| FTD-IRW2S-E2545 |
| FTD-IRW2S-E3025 |
|
Camera |
|
|
Max. Resolution |
3840x2160 |
|
Image Sensor |
1/1.8" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
20x optical, 16x digital |
|
Lens |
|
|
Focal Length |
6.0mm to 120 mm |
|
FOV |
Horizontal field of view: 61.8° to 1.8° |
|
Aperture |
Max. F1.5 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
IR Distance: up to 500 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 180°/s; preset speed: 250°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Video |
|
|
Main Stream |
Main Stream: 3840x2160@25/30fps; 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest (ROI) |
4 fixed regions for each stream |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Optical-Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC, max. 42 W (including max. 18 W for IR) 802.3bt (PoE++) |
|
Operating Condition |
-45 °C to 70 °C. Humidity 90% or less (non-condensing) |
|
Dimension |
Ø 223 mm × 372 mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 6000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
NO |
AVAILABLE MODELS
| FTD-IR6-E2085 |
| FTD-IR6-E3245 |
| FTD-IR6-E2545 |
| FTD-IR6-E3025 |
|
Camera |
|
|
Max. Resolution |
3840x2160 |
|
Image Sensor |
1/1.8" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
20x optical, 16x digital |
|
Lens |
|
|
Focal Length |
6.0mm to 120 mm |
|
FOV |
Horizontal field of view: 61.8° to 1.8° |
|
Aperture |
Max. F1.5 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
IR Distance: up to 200 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 180°/s; preset speed: 250°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Video |
|
|
Main Stream |
Main Stream: 3840x2160@25/30fps; 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest (ROI) |
4 fixed regions for each stream |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Optical-Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC, max. 42 W (including max. 18 W for IR) 802.3bt (PoE++) |
|
Operating Condition |
-45 °C to 70 °C. Humidity 90% or less (non-condensing) |
|
Dimension |
Ø 223 mm × 372 mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 6000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
YES |
Note:
The World's First “Air wiper”Patented invisible wiper Technology.
By Smart rain sensor，Camera can clear Rainwater & Deducting automatically. Extremely suitable for the harshest environment. Clear rainwater timely and no rain drop, speed dome Camera glass will never be hurt for using invisible wiper. This kinds of wiper can work is up to 60 months. IRS2 Smart wiper will stop working automatically. There's no rain masks/drops on lens glass. Smart wiper can make dedusting and do not hurt glass for using advanced technology, that will help to provide high quality image.
|
Camera |
|
|
Max. Resolution |
3840x2160 |
|
Image Sensor |
1/1.8" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
20x optical, 16x digital |
|
Lens |
|
|
Focal Length |
6.0mm to 120 mm |
|
FOV |
Horizontal field of view: 61.8° to 1.8° |
|
Aperture |
Max. F1.5 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
IR Distance: up to 200 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 180°/s; preset speed: 250°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Video |
|
|
Main Stream |
Main Stream: 3840x2160@25/30fps; 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest (ROI) |
4 fixed regions for each stream |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Optical-Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC, max. 42 W (including max. 18 W for IR) 802.3bt (PoE++) |
|
Operating Condition |
-45 °C to 70 °C. Humidity 90% or less (non-condensing) |
|
Dimension |
Ø 223 mm × 372 mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 6000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
NO |
AVAILABLE MODELS
| FTD-IRS-E2082 |
| FTD-IRS-E3242 |
| FTD-IRS-E2542 |
| FTD-IRS-E3022 |
|
Camera |
|
|
Max. Resolution |
2688*1520 |
|
Image Sensor |
1/2.9" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
32x optical, 16x digital |
|
Lens |
|
|
Focal Length |
4.7 mm to 150 mm |
|
FOV |
Horizontal field of view: 59.5° ~2.0° |
|
Aperture |
Max. F1.5 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
Illuminator |
|
|
Supplement Light Type |
NO IR |
|
Supplement Light Range |
IR Distance: up to 0 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 180°/s; preset speed: 250°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Video |
|
|
Main Stream |
Main Stream: 2688*1520@25/30fps; 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest (ROI) |
4 fixed regions for each stream |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Electronic-Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC, max. 42 W (including max. 18 W for IR) 802.3bt (PoE++) |
|
Operating Condition |
-45 °C to 70 °C. Humidity 90% or less (non-condensing) |
|
Dimension |
Ø 223 mm × 372 mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 6000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
NO |
AVAILABLE MODELS
FA3-E3082 8M 1/1.8" 6.0 ~180mm 30X
FA3-E3242 4M 1/2.9" 4.7 ~ 141mm 32X
FA3-E2542 4M 1/2.9" 4.7 ~ 141mm 25X
FA3-E3022 2M 1/2.8" 4.7～141mm 30X
|
Camera |
|
|
Max. Resolution |
2688*1520 |
|
Image Sensor |
1/2.9" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
25x optical, 16x digital |
|
Lens |
|
|
Focal Length |
5.0 mm to 125 mm |
|
FOV |
Horizontal field of view: 59.5° ~2.0° |
|
Aperture |
Max. F1.5 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
Illuminator |
|
|
Supplement Light Type |
NO IR |
|
Supplement Light Range |
IR Distance: up to 0 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 180°/s; preset speed: 250°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Video |
|
|
Main Stream |
Main Stream: 2688*1520@25/30fps; 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest (ROI) |
4 fixed regions for each stream |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Electronic-Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC, max. 42 W (including max. 18 W for IR) 802.3bt (PoE++) |
|
Operating Condition |
-45 °C to 70 °C. Humidity 90% or less (non-condensing) |
|
Dimension |
Ø 223 mm × 372 mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 6000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
NO |
AVAILABLE MODELS
FA3-E3082 8M 1/1.8" 6~180mm 30X
FA3-E3242 4M 1/2.9" 4.7 ~ 141mm 32X
FA3-E2542 4M 1/2.9" 4.7 ~ 141mm 25X
FA3-E3022 2M 1/2.8" 4.7～141mm 30X
|
Camera |
|
|
Max. Resolution |
1920*1080 |
|
Image Sensor |
1/2.8" Sony progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/30000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
30x optical, 16x digital |
|
Lens |
|
|
Focal Length |
4.7mm ～ 141mm |
|
FOV |
Horizontal field of view: 61.2° ~ 2.2° |
|
Aperture |
Max. F1.5 |
|
Focus |
Auto, semi-auto, manual |
|
Close Focus Distance |
0.1m ～ 1.5m (Wide ～ Tele) |
|
Illuminator |
|
|
Supplement Light Type |
NO IR |
|
Supplement Light Range |
IR Distance: up to 0 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 180°/s; preset speed: 250°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Presets |
250 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan |
|
Video |
|
|
Main Stream |
Main Stream: 1080P@25/30fps; 720P@25/30fps |
|
Streaming |
Triple Streaming |
|
Video Compression |
H.265/H.264+/H.264 |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
Region of Interest (ROI) |
4 fixed regions for each stream |
|
Audio |
|
|
Video Bit Rate |
32kMbps ～ 16Mbps |
|
Audio Compression |
AAC/MP2L2 |
|
Network |
|
|
Network Storage |
NAS |
|
Protocols |
ONVIF, GB28181 IPv4/IPv6, HTTPs, HTTP, RTSP, RTP, TCP, UDP, PPPoE, DDNS, TCP/IP, SNMP, QoS, 802.1x, Bonjour, FTP |
|
User/Host |
Up to 20 users, 3 user levels: administrator, Onvif user, and online user |
|
Security |
Password protection, complicated password, HTTPS encryption, |
|
Web Browser |
IE11, Chrome 57+, Firefox 52+ |
|
Image |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
WDR |
120 dB |
|
Defog |
Electronic-Defog |
|
Exposure Model |
Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority |
|
S/N Ratio |
≥ 55dB（AGC Off, Weight ON） |
|
Image Stabilization |
Electronical Image Stabilisation (EIS) |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD up to 256 GB |
|
Alarm |
1 inputs, 1 output |
|
Audio |
1 input (line in), max. 1 output (line out) |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, alarm input and output |
|
Smart Event |
Tripwire, Intrusion, Loitering, etc. |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, |
|
General |
|
|
Power |
24 VAC, max. 42 W (including max. 18 W for IR) 802.3bt (PoE++) |
|
Operating Condition |
-45 °C to 70 °C. Humidity 90% or less (non-condensing) |
|
Dimension |
Ø 223 mm × 372 mm |
|
Weight |
Approx. 8 kg |
|
Protection |
IP66, IK10, TVS 6000V lightning protection, surge protection and voltage transient protection |
|
Wiper |
NO |
