The Challenge: Securing a 12km Perimeter with Zero Blind Spots

A national border authority operating in a semi-arid region faced a surveillance crisis that standard CCTV systems could not resolve. Their existing network of fixed cameras left critical gaps along a 12-kilometer perimeter — particularly in ravines, ridge lines, and areas where ground-level obstructions blocked line-of-sight. At night, IR ranges of 80–150 meters proved dangerously inadequate. False alarms triggered by wildlife were consuming operator attention at an unsustainable rate, and the absence of grid power across two-thirds of the deployment zone ruled out any solution that required mains electricity.

The brief was precise: detect human targets at a minimum of 3,000 meters, distinguish heat signatures from environmental noise, and transmit real-time video to a central command facility with no fiber cable in the ground.

Why Standard PTZ Cameras Failed This Environment

Three categories of equipment were evaluated before the final solution was selected. Each failed for a distinct technical reason:

• Consumer-grade PTZ domes (IR range: 100–200m) — Detection distance was insufficient by an order of magnitude. At 200 meters, a human target occupies fewer than 4 pixels on a 1080p sensor, making identification impossible.
• Fixed thermal cameras — Adequate for detection, but no optical zoom meant positive identification required a second camera at each node, doubling infrastructure cost and complexity.
• Long-range fixed cameras with manual pan — Operator fatigue and response latency meant that by the time a threat was manually confirmed and tracked, it had already moved outside the frame.

The core requirement — simultaneous thermal detection and high-magnification optical identification from a single unit, operating without mains power — pointed to one product category: a dual-sensor EO/IR positioning system with integrated solar capability.

Solution Architecture: FTD-PTZD + Solar + Wireless Backhaul

The selected architecture centered on the FTD-PTZD Spectrum Dual-Sensor Network Positioning System, deployed at 14 nodes across the perimeter. Each node was engineered as a fully autonomous unit requiring no external power or data cabling.

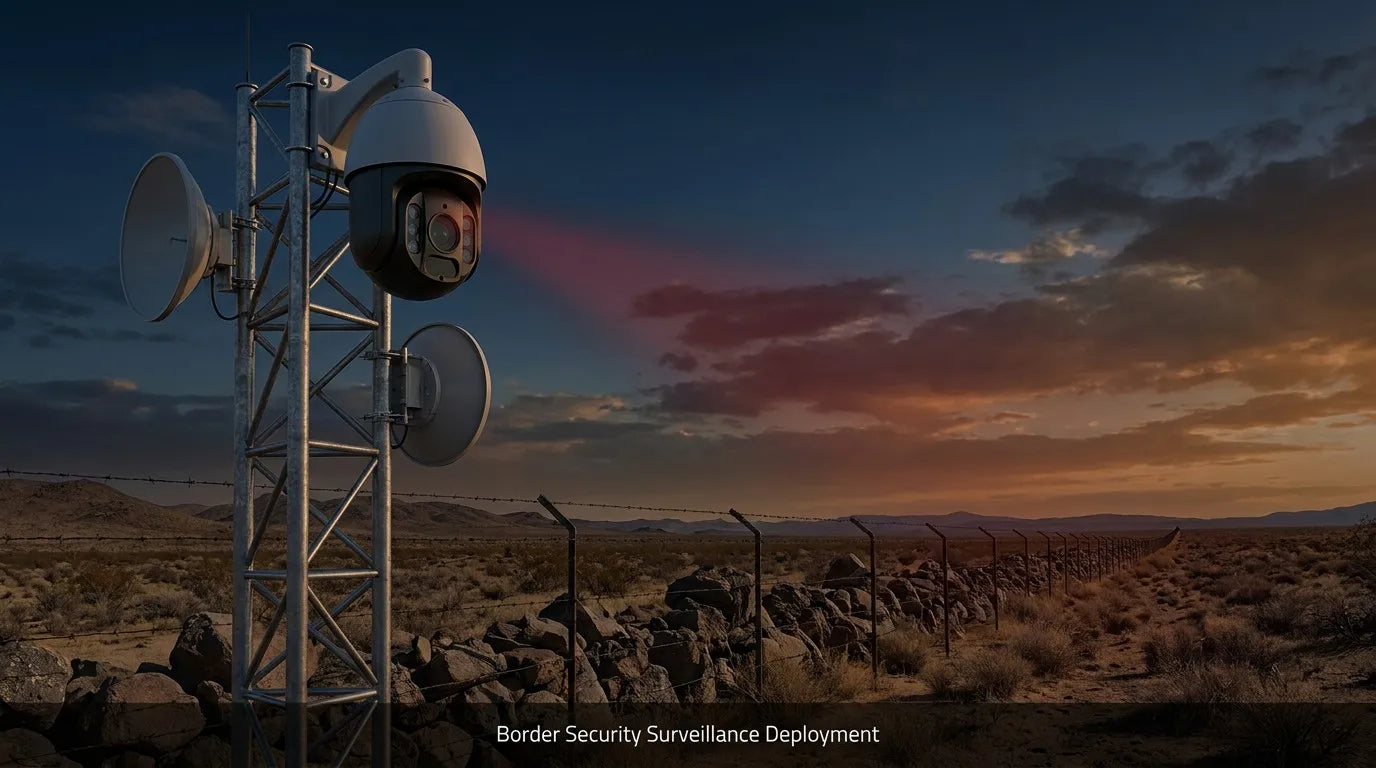

At each node, the FTD-PTZD was co-mounted with a 300W / 180AH solar power system on a 10-meter galvanized steel mast. A 10km point-to-point wireless bridge transmitted compressed 4K video streams back to the command center, with a measured latency under 80 milliseconds. The entire node — camera, power, communications — was designed for installation by a two-person team in under six hours, with no trenching required.

Node positions were determined by terrain modeling, ensuring overlapping coverage between adjacent units. The system was configured for automatic handoff tracking: as a target moves from one camera's optimal detection zone into the next, the command software initiates a coordinated pan on the receiving unit before the target exits the transmitting unit's frame.

Technical Specifications

Deployment Details

Installation proceeded in two phases over a 22-day period. Phase one covered the six highest-priority nodes at known crossing points; phase two addressed the remaining eight nodes along lower-activity segments.

The SUS304 stainless steel pole mount brackets were specified for mast attachment, rated for sustained wind loads of 55 m/s — a requirement driven by the region's seasonal storm profile. Cable entry points were sealed with IP68-rated junction boxes from Fengtaida's weatherproof power enclosure range, eliminating moisture ingress at the most failure-prone point of any outdoor installation.

Commissioning involved alignment of all 14 wireless bridge pairs, calibration of thermal detection thresholds to minimize false alerts from wildlife, and integration with the authority's existing video management software via ONVIF protocol. No custom SDK development was required.

Results After 90 Days of Operation

• Detection range extended from 150m to 3,000m+ — a 20x improvement over the previous system.
• False alarm rate reduced by 94% — achieved through thermal threshold calibration that distinguishes human heat signatures from ambient temperature variations caused by animals and vegetation.
• Zero unplanned downtime during the first 90-day operational period, including through a significant storm event that brought sustained winds of 48 m/s.
• Operator workload reduced by 60% — automated tracking and coordinated handoff eliminated the need for continuous manual camera control during perimeter sweeps.
• Full deployment cost recovered in estimated 14 months based on reduction in personnel costs for physical patrols previously required to compensate for camera blind spots.

Frequently Asked Questions

What is the minimum detection range for a border security PTZ camera?
For professional perimeter applications, effective human detection requires a minimum range of 1,500–2,000 meters using thermal sensing. Positive identification — confirming the nature and intent of a target — requires optical zoom capability at 2,000–3,000 meters. Systems that offer only optical capability without thermal will experience significant performance degradation in low-light, fog, or smoke conditions.

Can a solar-powered PTZ camera operate continuously in regions with limited sunlight?
Yes, with correctly sized battery storage. The 300W / 180AH system used in this deployment maintained full operation for 72 consecutive hours without solar input during overcast periods. Deployments in equatorial or desert regions with high solar irradiance can sustain larger arrays at lower battery capacity; high-latitude deployments should increase battery capacity to account for shorter winter daylight hours.

How is video transmitted from remote border nodes without fiber infrastructure?
Point-to-point 5.8GHz wireless bridges provide a practical solution for distances up to 10km per link. For longer distances or multi-hop networks, links can be chained. The technology provides stable throughput for multiple simultaneous 4K streams with latency under 100ms — adequate for real-time surveillance and operator response.

What protocols do Fengtaida positioning systems support for integration with existing VMS platforms?
All FTD-PTZ series devices support ONVIF Profile S and G, GB/T 28181 (mandatory for certain government deployments), RTSP for direct stream access, and a proprietary SDK for deep integration with custom command and control platforms. Most major VMS platforms including Milestone, Genetec, and Hikvision iVMS are compatible via ONVIF.
