How to Choose a Solar-Powered PTZ Camera System for Remote Surveillance: A Buying Guide

Direct Answer

A solar-powered PTZ camera surveillance system should be selected from the total remote-site operating requirement outward—not from an isolated solar panel wattage, a single battery amp-hour figure, or a standalone camera specification. A dependable off-grid surveillance installation connects the site's seasonal solar resource, continuous day-and-night power budget, battery chemistry and autonomy reserve, camera power profile (including optical zoom, IR illumination, and motor movement), communication backhaul, physical mounting, and rigorous field acceptance testing.

The engineering variables that determine successful off-grid surveillance procurement are: site geographic location and winter peak-sun hours (PSH); total daily continuous load (watt-hours/day); battery autonomy days during extended overcast or storm conditions; peak versus standby camera power draw; battery charge controller efficiency (MPPT vs. PWM); low-temperature battery performance and heating protection; backhaul power consumption (4G cellular vs. long-range wireless bridge); mounting pole wind load; and cold-start recovery behavior.

This solar surveillance buying guide is designed for security engineers, system integrators, infrastructure operators, and procurement specialists evaluating standalone off-grid CCTV nodes. It provides an objective decision framework, engineering sizing steps, technology trade-offs, and an RFQ checklist—not a generic one-size-fits-all package or an unsubstantiated guarantee of perpetual runtime in all weather.

Direct answer: Size the solar power system to the camera's true continuous consumption and worst-case winter irradiance, not its nominal daytime standby rating. Separate the camera selection, energy generation (solar array), energy storage (lithium battery pack), and backhaul network into a unified power balance equation. A camera claiming "solar compatibility" without a documented continuous power draw specification, winter autonomy calculation, and temperature-tolerant charge management is a high risk for remote brownout and premature battery degradation.

What Is a Solar-Powered PTZ Surveillance System?

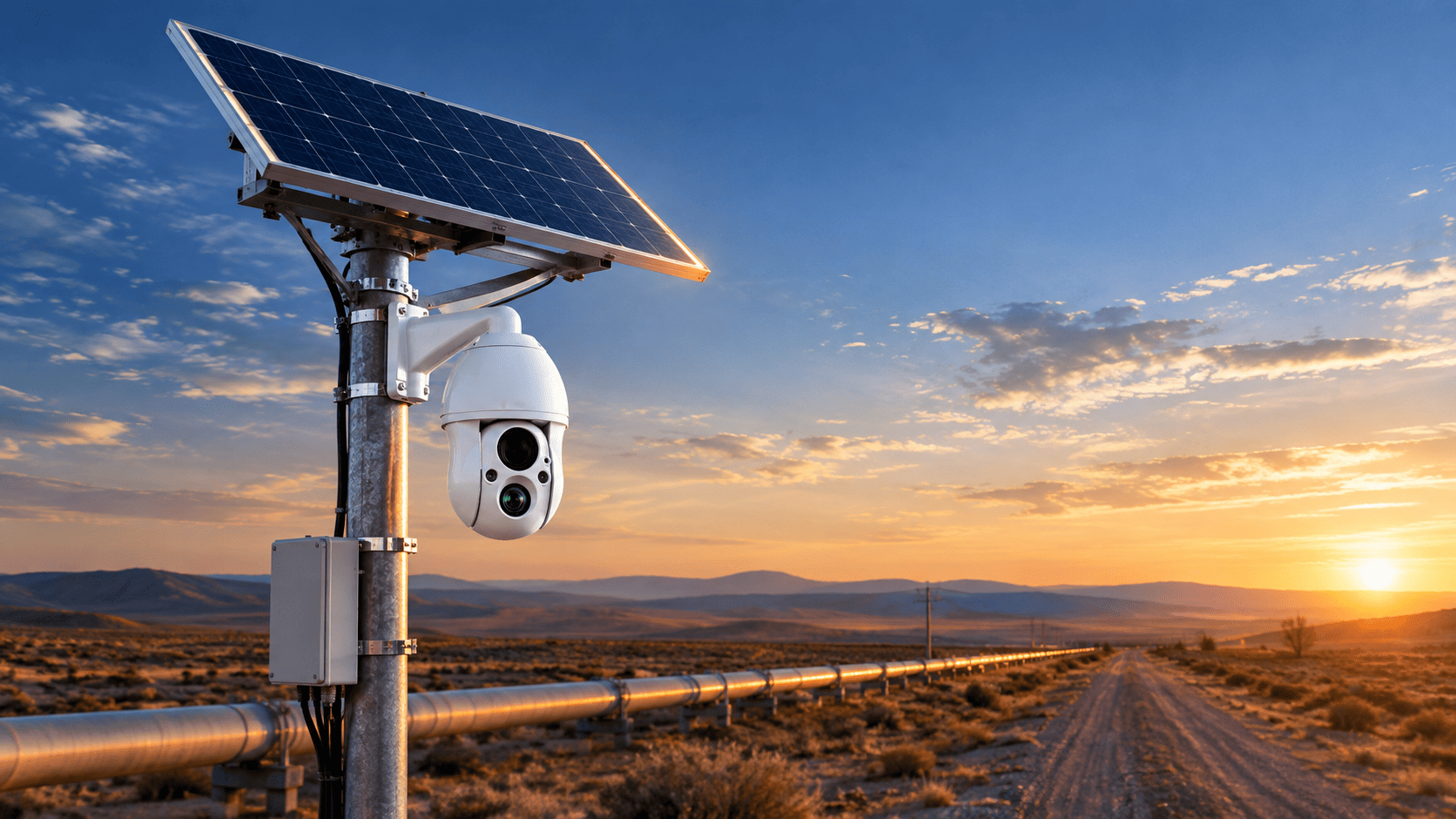

A solar-powered PTZ surveillance system is an autonomous, self-contained remote security node that generates, stores, and manages its own electrical power to operate motorized pan-tilt-zoom cameras, edge intelligence, and data transmission equipment continuously at off-grid locations where utility electrical grid connection is unavailable, cost-prohibitive, or technically impractical.

A complete solar surveillance node typically integrates:

• Solar Photovoltaic (PV) Array: Monocrystalline panels engineered to convert ambient solar irradiance into direct current (DC) power;
• Energy Storage System: Deep-cycle Lithium Iron Phosphate (LiFePO4) or ternary lithium battery banks sized for multi-day autonomy;
• Intelligent Solar Charge Controller: Maximum Power Point Tracking (MPPT) or Pulse Width Modulation (PWM) regulator with low-voltage disconnect (LVD) and temperature compensation;
• Surveillance & Optical Payload: High-performance PTZ cameras such as optical zoom domes, IR illuminators, or thermal sensors;
• Wireless Communication Link: Integrated 4G/5G cellular modem, point-to-point wireless bridge, or satellite telemetry;
• Physical Mounting & Protection Hardware: Heavy-duty pole-mount brackets, wind-resistant fixtures, IP66/IP67 weatherproof enclosures, and power distribution junction boxes.

Conclusion: A solar-powered PTZ surveillance system is a balanced electromechanical and optical assembly where power generation, energy storage, dynamic electrical consumption, and communication must operate in continuous equilibrium.
Applicable conditions: Remote perimeters, oil and gas pipelines, agricultural estates, construction sites, mining facilities, critical utilities, and border sectors lacking accessible grid electricity.
Verification limits: An off-grid solar system's operational continuity depends directly on geographic latitude, local seasonal sunlight variations, shading, and mechanical maintenance. Sizing must be custom-calculated for each target deployment location.

What the System Is Not

• It is not a consumer-grade "battery security camera" that records only short PIR-triggered clips and sleeps 99% of the day. Industrial solar surveillance demands continuous stream processing, on-demand optical zoom, and 24/7 recording or analytics.
• It is not immune to bad weather without properly calculated autonomy reserves (typically 3 to 5 consecutive sunless days).
• It is not a random collection of off-the-shelf parts wired together without matching charge curves, system voltage (12V/24V DC), and peak motor draw.

Solar Surveillance System Approaches and Comparison

Before selecting hardware, buyers must determine which system configuration matches their deployment model, budget, site accessibility, and maintenance capabilities.

Approach A — Pre-Engineered Integrated Solar Power Kits

A factory-integrated kit matches the PV panel, battery enclosure, and internal MPPT controller into a calibrated package designed for standard commercial PTZ cameras. It simplifies procurement, ensures component compatibility, and reduces on-site installation labor.

Candidates for evaluation include:

• The 120W Industrial Solar Kit for low-power compact PTZ units, fixed cameras, or intermittent telemetry nodes in favorable solar regions.
• The 300W 180AH Solar Panel Energy Power System for continuous 24/7 high-speed PTZ cameras, long-range IR illumination, and auxiliary wireless transmission gear requiring substantial continuous reserve capacity.

Approach B — Custom-Engineered Component Architecture

For extreme environments (sub-zero arctic zones, desert heat, or multi-sensor radar/optical nodes), engineers source industrial-grade third-party solar arrays, heated lithium battery vaults, and external industrial MPPT controllers. This offers maximum scalability but requires dedicated engineering labor, on-site wiring, and multi-vendor warranty coordination.

Approach C — Hybrid Solar-Wind / Dual-Source Systems

Combining solar PV with small vertical-axis wind turbines or backup micro-generators. Suitable for high-latitude winter environments where sunlight is minimal for months but wind resources are consistent. Sizing and mechanical complexity are significantly higher.

Comparison Table: Solar Surveillance Architectures

How to Choose a Solar-Powered PTZ Camera System: 6 Engineering Steps

Scenario this guide addresses: An engineering or security team deploying remote surveillance nodes at off-grid locations needs to size solar generation, battery storage, and dynamic camera power draw as one integrated system rather than sourcing isolated components.

Step 1 — Define the Remote Site Profile, Latitude, and Solar Irradiance

The foundation of solar sizing is geographic location. Procurement teams must request historical Peak Sun Hours (PSH) data for the worst-case month (typically December in the Northern Hemisphere) rather than relying on annual averages.

• Peak Sun Hours (PSH): Sizing must be calculated against the lowest monthly PSH (e.g., 2.0 to 2.5 hours/day in temperate winter zones), not summer peak figures (5.5+ hours/day).
• Panel Tilt Angle: Fixed panels must be angled to optimize winter collection (typically site latitude + 10° to 15°).
• Shading & Obstructions: Topographical survey must ensure zero tree canopy, cliff, or structural shadow across the solar array between 09:00 and 15:00.

Step 2 — Calculate True Continuous Power Load and Total Daily Energy Budget

A solar power system fails when calculated against nominal static wattage rather than dynamic continuous operation.

• Daytime Idle Draw: Camera electronics, image sensor, processor, and network modem (e.g., 8W to 12W).
• Nighttime IR Illumination Draw: High-power IR LEDs or laser illuminators dramatically increase consumption during dark hours (e.g., +15W to +35W for long-range IR).
• PTZ Motor Movement Duty Cycle: Continuous patrol tours and active auto-tracking draw mechanical power (e.g., +10W to +25W peak per motor cycle).
• Formula: Daily Energy Requirement (Wh) = (Daytime Watts × Daytime Hours) + (Nighttime Watts with IR × Nighttime Hours) + (Auxiliary Comms Watts × 24h).

Step 3 — Size the Battery Storage Chemistry, Capacity, and Autonomy Days

Autonomy is the number of consecutive zero-generation days the system must operate before reaching low-voltage shutoff.

• Battery Chemistry: Specify Lithium Iron Phosphate (LiFePO4) for 2,000+ deep-discharge cycles (80% Depth of Discharge) and high thermal stability compared to legacy Lead-Acid/Gel (50% DoD limit and short lifespan).
• Autonomy Standard: Specify a minimum of 3 to 5 continuous autonomy days for general remote infrastructure; 5 to 7 days for critical unattended perimeters.
• Temperature Derating: LiFePO4 batteries lose available capacity below 0°C and cannot be safely charged below freezing without integrated thermal heating management or low-temperature charge control logic.

Step 4 — Select the Camera Payload: Match Optics and Power Characteristics

Not every camera is suitable for off-grid solar deployment. The optical payload must balance optical performance against power efficiency.

• High-Speed Optical PTZ: For active wide-area coverage requiring optical zoom and operator tracking, evaluate the IR6 IR High speed dome Camera. Its high-speed positioning mechanism, powerful optical zoom, and adaptive IR lighting make it a standard choice for perimeter security when paired with a robust 300W/180Ah solar platform.
• Compact Low-Power PTZ: For secondary perimeters or smaller power budgets where structural pole load is constrained, evaluate the IRM mini outdoor ptz camera.
• Wiper & Harsh Weather Models: For dusty, desert, or industrial fallout zones where rain cannot clean the lens, evaluate the IRW2S IR Wiper Speed Dome Camera or IRS2 IR outdoor speed Dome camera with Air Wiper, accounting for the intermittent power draw of the wiper motor in the sizing calculation.

Step 5 — Plan Communication Backhaul, Junction Boxes, and Structural Mounting

An autonomous camera node requires reliable data transmission and mechanical integrity.

• Wireless Long-Range Backhaul: Where direct line-of-sight exists back to a base station up to 10km away, integrate the 10km Wireless Bridge CPE outdoor. Ensure its 24V/48V PoE injector and continuous power draw (5W to 10W) are factored into the main solar controller sizing.
• Weatherproof Power Distribution: Use an IP66/IP67 rated Power Junction Box to protect fuses, surge protection devices (SPDs), DC/DC converters, and cable terminations from moisture and dust ingress.
• Structural Pole Mount & Wind Resistance: The combined surface area of solar panels and dome camera creates significant wind drag. Specify heavy-duty mounting hardware like the Pole Mount rated for local wind gust standards (e.g., 120 km/h to 160 km/h).

Step 6 — Confirm Cold-Start Recovery, Remote Diagnostics, and Acceptance Testing

The final step is verifying system intelligence when operating at energy margins.

• Low-Voltage Disconnect (LVD) & Auto-Recovery: The system must safely shut down the camera payload before the battery is fully depleted, and automatically reboot and re-establish network telemetry once solar generation restores battery state-of-charge (SOC) to safe operating thresholds.
• Remote Telemetry: Verify if the solar controller reports real-time battery voltage, solar input current, load draw, and ambient temperature via SNMP, Modbus, or web interface back to the central VMS/NVR.
• Factory & Site Acceptance Test (FAT/SAT): Conduct a 72-hour burn-in test including simulated dark cycles, full IR illumination activation, continuous PTZ patrol tours, and simulated power-loss recovery before final sign-off.

System Architecture: Autonomous Solar Surveillance Node

The following diagram illustrates how generation, storage, control, sensing, and telemetry connect into an integrated autonomous system:

[ Monocrystalline Solar Array (120W - 300W) ]
                       │
                       ▼
         [ MPPT Solar Charge Controller ] ◄──────► [ LiFePO4 Battery Bank (30Ah - 180Ah) ]
                       │
         ┌─────────────┴─────────────┐
         ▼                           ▼
[ Power Junction Box (DC Reg / SPD) ] [ Low-Voltage Disconnect / Telemetry ]
         │                           │
         ├───────────────────────────┘
         │
         ├───► [ IR6 High-Speed Dome / PTZ Camera ] (Visual Monitoring & Auto-Tracking)
         │
         └───► [ 10km Wireless Bridge CPE / 4G Modem ] (Data & Video Transmission)
                       │
                       ▼ (Wireless RF / Cellular)
         [ Central Command Center / VMS / NVR Recording Node ]

For a detailed breakdown of a full-scale deployed engineering setup, review the companion Solar Off-Grid PTZ Surveillance Reference Solution Configuration.

Solar Surveillance RFQ Preparation Checklist

Copy and customize these technical specifications when issuing an inquiry or tender document to ensure vendor proposals are directly comparable:

Quote Red Flags to Avoid in Vendor Proposals

When evaluating commercial quotes for solar CCTV equipment, treat the following claims as technical red flags:

• "Runs 365 Days Guaranteed with a 60W Panel": Sizing without stating the geographic location, winter PSH, camera IR wattage, and duty cycle is scientifically invalid.
• Sizing for "Standby" Instead of "Active IR Tracking": Proposals that use the camera's 8W idle rating while ignoring its 25W+ nighttime IR illumination will experience winter brownouts within days.
• Unspecified Battery Chemistry: Quotes that state "High-Capacity Lithium Battery" without specifying LiFePO4, cycle life rating (e.g., ≥ 2,000 cycles), or cell manufacturer tier.
• No Low-Temperature Charge Cutoff: Charging standard lithium batteries below 0°C causes permanent lithium plating and rapid fire/degradation risk. Quality systems must integrate low-temperature charge prevention logic.
• PWM Regulators for High-Power PTZ: Using cheap PWM controllers instead of MPPT loses 20% to 35% of harvested solar energy, especially during cold, cloudy winter days when solar yield is most critical.
• Missing Structural Wind Load Calculations: Supplying large solar panels on flimsy sheet-metal brackets without engineering ratings for wind gusts.

Request a Solar-Powered PTZ Surveillance Configuration

Fengtaida engineers and manufactures field-proven industrial PTZ surveillance systems, integrated solar power assemblies, and long-range wireless backhaul equipment for demanding off-grid environments worldwide.

Contact our engineering support team with your project's location, target perimeter dimensions, camera optical requirements, and communication constraints. We will provide a complete, verified solar power balance calculation, matched hardware proposal, and technical RFQ documentation within 24 hours.

Related Products for Solar Surveillance Systems

The following verified products from the Fengtaida catalog serve as primary building blocks and options for off-grid remote surveillance deployments:

• IR6 IR High speed dome Camera: High-performance optical speed dome engineered for broad-area perimeter monitoring, featuring rapid motorized positioning, high-ratio optical zoom, and long-range synchronized IR night vision.
• 300W 180AH Solar Panel Energy Power System: Heavy-duty off-grid power platform engineered for continuous 24/7 PTZ operation, high-draw IR night surveillance, and multi-day battery autonomy.
• 120W Industrial Solar Kit: Compact, fast-deployment solar power kit ideal for low-power PTZ cameras, fixed perimeter cameras, and remote telemetry points.
• IRM mini outdoor ptz camera: Compact outdoor PTZ camera providing agile positioning and optical monitoring with optimized low power consumption for resource-constrained solar sites.
• IRW2S IR Wiper Speed Dome Camera: Heavy-duty wiper-equipped PTZ dome designed to maintain clear optical visibility in dusty, desert, or industrial environments without manual intervention.
• 10km Wireless Bridge CPE outdoor: High-throughput outdoor point-to-point wireless transmission system providing long-distance video backhaul where trenching fiber is impossible.
• Power Junction Box: Ruggedized IP66/IP67 weatherproof electrical junction enclosure for organizing DC power conversion, surge protection, and cabling.
• Pole Mount: Heavy-duty structural mounting bracket designed to securely anchor camera payloads and solar hardware to utility and security poles.

Sources and Verification Notes

1. Fengtaida Off-Grid Reference Solution: Sizing principles and component coordination reflect engineering methodologies from the Solar Off-Grid PTZ Surveillance for Remote Infrastructure: A Reference Solution Configuration.
2. IEC 61215 / IEC 61730: International standards for terrestrial photovoltaic module design qualification and safety construction.
3. IEC 62619: Safety requirements for secondary lithium cells and batteries for use in industrial applications.
4. IEEE 1562: Standard for sizing solar photovoltaic (PV) systems for standalone terrestrial applications.
5. ONVIF Standards: ONVIF Profile S and Profile T compliance standards for remote IP video streaming, PTZ control, and event telemetry.
